Prescalers​

The high-performance UltraCMOS RF prescaler family offers a fixed divide ratio of 2, 4 or 8. These prescalers operate across a frequency range from dc to 13.5GHz on a nominal 3-voltsupply while drawing between 6.5 and 16mA. These devices have excellent sensitivity and are well suited for microwave phase-locked loop (PLL)synthesis solutions.

 Products

Product Datasheet Type Desc. Frequency
Range (MHz) Min
Frequency Range (MHz) Max Divide Ratio Package Package (mm) Hi-Rel

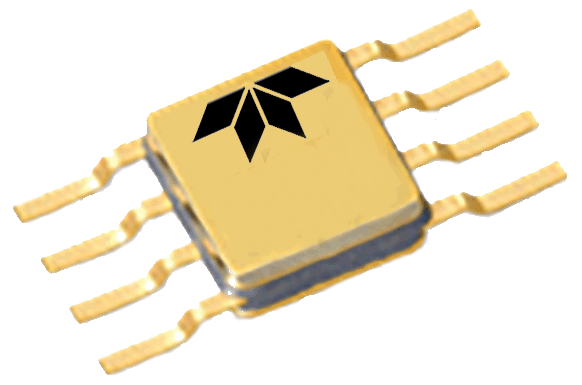

PE9304 Divide by 2 Low Power 1000 7000 2.0 8L CFP 4.6x4.6 Yes
PE9309 Divide by 4 Low Power 3000 13500 4.0 8L CFP 4.6x4.6 Yes
PE9311 Divide by 2 Low Power DC 1500 2.0 8L CFP 4.6x4.6 Yes
PE9312 Divide by 4 Low Power DC 1500 4.0 8L CFP 4.6x4.6 Yes
PE9313 Divide by 8 Low Power DC 1500 8.0 8L CFP 4.6x4.6 Yes
