Up Screening, LAT, Element Evaluation & More

VALUE ADDED SERVICES At-A-Glance
  • Full RF and DC testing up to 26.5 GHz
  • Up Screening / LAT to MIL-PRF-19500, 38534, 38535 and MIL-STD-883 for Military and Space
  • Space Level Screening: K-level, S-level, and H-level
  • Up Screening & Testing of GaN devices
  • Verification & Testing of Counterfeit Parts
  • Space Level Screening & Qual for plastic encapsulated devices per NASA PEM-INST-001
  • LAT and Up Screening on FETS & MMICs, Bipolar Transistors, and Diodes
  • Packaging and Screening of Active Die
  • Build to Print Assembly: simple die / complex hybrids, hermetic sealing, passive / active components
For over three decades, Teledyne RF & Microwave has built a strong heritage delivering advanced value added services to the military, space and industry sectors of aerospace. With test capabilities up to 40 GHz, Teledyne offers chip and wire assembly of products ranging from single die through complex hybrids which can then be submitted to a combination of customer-specified RF and DC testing and environmental screening. We offer a complete portfolio of screening and testing services for device sorting, labeling, lead forming and tinning, and tape-and-reel packaging, as well as LAT services on packaged devices or bare-die, including diodes, transistors, and MMICs.

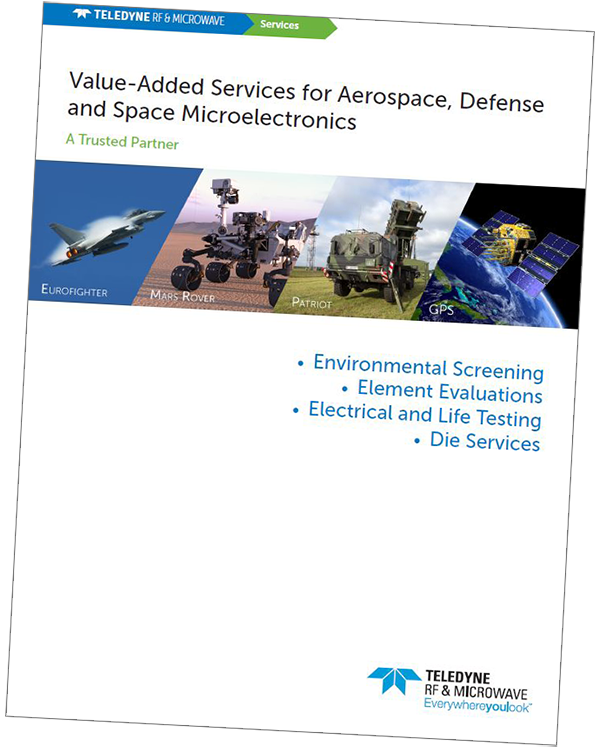

Vadd TN 600px.png

 MARKET APPLICATIONS & KEY PROGRAMS


Market Applications
  • Military: EW, Radar, Missiles
  • Space: Satellite, Military
  • Industrial
Key Heritage Programs
  • Patriot
  • Lunar Probe
  • Euro Fighter
  • Classified Space
  • GPS
  • Laser
  • AEHF

  ENVIRONMENTAL SCREENING

​​Teledyne RF & Microwave is a full service MIL-STD-750 and MIL-STD-883 environmental test laboratory and program management organization. Individual environmental tests or full qualification/ screening programs can be conducted to standard military or customer proprietary specifications, including MIL-PRF-19500, MIL-PRF-38534, MIL-PRF-38535 Groups A, B, C, D, and E testing. Following are just some of the product types that TW routinely screens and the typical screening services provided.
  • Amplifiers
  • Die (transistors, diodes and MMIC element evaluation)
  • Packaged Transistors and MMICs
  • Diodes; Axial, Beam-Lead
  • Frequency Dividers (Pre Scalars)
  • Mixers
  • Custom Packaged Devices
  • Additional Product Test Capabilities: Voltage Controlled Attenuators, Detectors, Power Dividers, Filters, VCOs
  • Packages & Lid Screening
  • Screening & testing of GaN devices to Customer Specs
  • Verification & Testing on Counterfeit parts

 ELECTRICAL TEST CAPABILITIES

Teledyne has full DC, RF and microwave test capabilities for your comprehensive element, hybrid, component, and subassembly testing requirements. Using fully documented and controlled test procedures, we can quickly provide go / no-go or complete RF test results from ambient to full military/space temperature extremes. Customers may specify the testing parameters, temperatures and data format they desire and obtain quick, accurate, and reliable results.

 DIE SERVICES

​​
Teledyne offers full die handling services including quick, reliable and cost-effective sorting of die. Our die services help you maintain a consistent flow of die to your manufacturing environment in the volumes and at the quality level you need, while increasing the reliability and manufacturability of COT parts. We also provide qualified die through 100% visual inspection and LAT (Lot Acceptance Testing) for space and military level applications.

Die Visual, Sorting and Packaging
  • Store Wafers (Dry Nitrogen Desiccators)
  • Die Visual
    • Commercial Level
    • Military Level and S-Class to MIL-PRF-19500, MIL-STD-750, MIL-STD-883, MIL-PRF-38534, MIL-PRF-38535
  • Die Package in Waffle or Gel Packs
    • Facilitate automated pick-and-place or manual transfer
We typically up screen active die from the following die manufacturers:
  • Avago
  • Fujitsu/Eudyna
  • NEC
  • RFMD
  • MA/COM
  • TriQuint
  • M-Pulse
  • Skyworks
  • CTC
  • NXT
  • Hittite

 MICROCIRCUIT & SEMICONDUCTOR DIE EVALUATION


Examples of full Microcircuit and Semiconductor Die evaluation per MIL-PRF-38534 are shown below. Teledyne supports other industry standard and custom screening and evaluation sequences, including:

 CLASS H  CLASS K
Element Electrical
Element Visual
Internal Visual
Final Electrical
Wire Bond Evaluation
Attribute Data/
Certificate of Conformance
Element Electrical
Element Visual
Internal Visual
Temperature Cycling
Constant Acceleration
Interim Electrical
Burn-in
Post Burn-in Electrical
Steady State Life
Final Electrical
Wire Bond Evaluation
SEM Examination
Attribute Data/
Certificate of Conformance
