​RF Limiters

The Teledyne e2v HiRel family of limiters offers solutions for military and aerospace applications.  Operating in frequencies from 2 MHz up to 6 GHz and attenuating RF signals up to 1000W (peak), these limiters can address many limiting requirements in military and orbital applications.

 What's New?

HiRel Expands Family of PIN Diode Limiters for Military Applications

Teledyne e2v HiRel announced two new additions to its family of high-power limiters, the TDLM052402, a quasi-active, 2 kW, L/S/C-band SMT PIN Diode Limiter and the TDLM961122 High Power Limiter Module a quasi-active, 1 kW, ARNS/IFF-band SMT PIN Diode Limiter. Both devices offer “always on” high power CW and peak protection.

 TDLM052402 datasheet  |  TDLM961122 datasheet  |  View the Press Release

Two New Power Limiters for Space

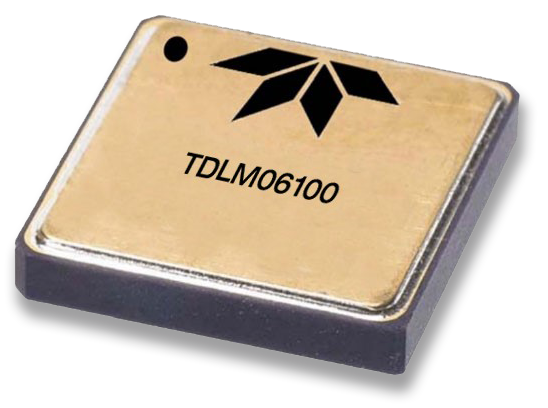

The first, model TDLM025100, is a 2.5 GHz, 100 W RF power limiter. The second limiter, model TDLM06100, is a 6.0 GHz, 100 W solution. Both are radiation tolerant, monolithic ‘all-in-one’ limiters based on Silicon-on-Insulator technology that are ideal for high reliability aerospace and defense applications.

 2.5 GHz limiter datasheet  |  6.0 GHz limiter datasheet

New Pin Diode Limiter for Military Apps

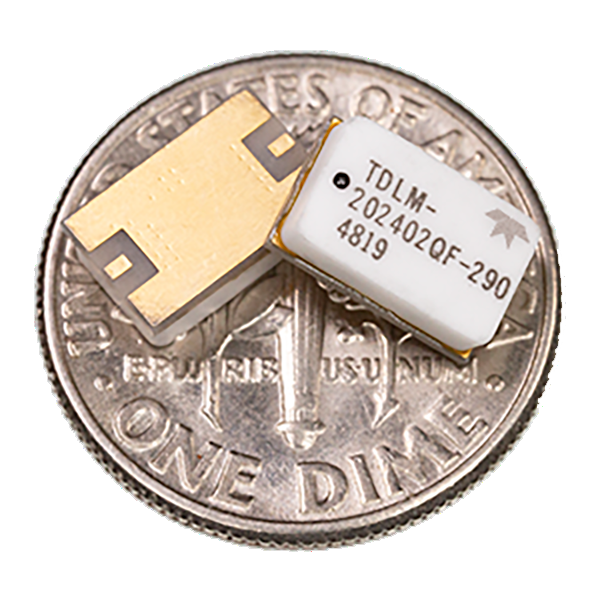

Teledyne e2v HiRel has introduced its first high power limiter for military applications, the TDLM202402 PIN Diode Limiter. It is a quasi-active, S-band, SMT, PIN Diode Limiter that offers “always on” high power CW and peak protection.

Download the datasheet

 Products

​Product

Data
Sheet
​
Function
Type
Desc.
​Min
Freq.
(MHz)
​Max
Freq.
(GHz)​
Threshold
Min
(dBm)
Threshold
Max
(dBm)
​Max
Power
Rating
(dBm)

​IIP3
(dBm)
​
Pkg.
​Pkg. (mm)		 ​
Appli-
cation
TDLM06100 ​
​Limiting,
Reflecting
 ​MMIC ​Low Threshold Limiter ​10 ​6.0​
​7 ​13 ​50 ​37
​24L
CLGA
 ​4x4 ​Space
TDLM025100 ​
​Limiting,
Reflecting
 MMIC ​Low Threshold Limiter ​10 ​2.5
 ​7 ​13 ​50 ​37
​24L
CLGA
 ​4x4​​
​
 Space​

TDLM202402

 ​
​Limiting,
Only
 PIN
Diode		 ​High
Power
Limiter		 ​2000 ​4
 ​0 ​14 60 ​N/A
​2p QFN
 ​5x8​​
​
 ​Military*
TDLM052402QC
NEW
 ​
​Limiting,
Only
 PIN
Diode		 High
Power
Limiter		 500 4000
​0 ​17 63 ​N/A
​2p QFN
 5X8​​
​
 Military*​

TDLM961122MC-299
NEW

 ​
​Limiting,
Only
 PIN
Diode		 High
Power
Limiter		 ​960 ​1215
 ​0 ​14 60 ​N/A
​2p QFN
 ​5x8​​
​
 ​Military*

* Available to US markets only.

​
