TDLM025100

The TDLM025100 is a RF power limiter qualified for operating in harsh environments, including military, space , avionics and medical applications.

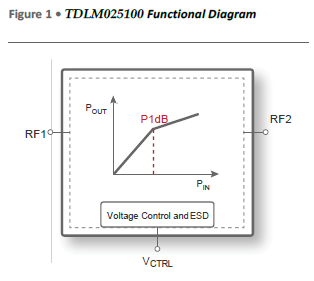

Unlike traditional PIN diode solutions, the TDLM025100 achieves an adjustable input 1 dB compression point or limiting threshold via a low current control voltage (VCTRL), eliminating the need for external bias components such as dc blocking capacitors, RF choke inductors and bias resistors.

It delivers low insertion loss and high linearity under non-limiting power levels and extremely fast response time in a limiting event, ensuring protection of sensitive circuitry. It also offers excellent ESD rating and ESD protection.

The TDLM025100 is a monolithic solution manufactured on a ruggedized process offering the performance of GaAs with the economy and integration of conventional CMOS.

TitleDescriptionDownload
DatasheetTDLM025100
