Mixers

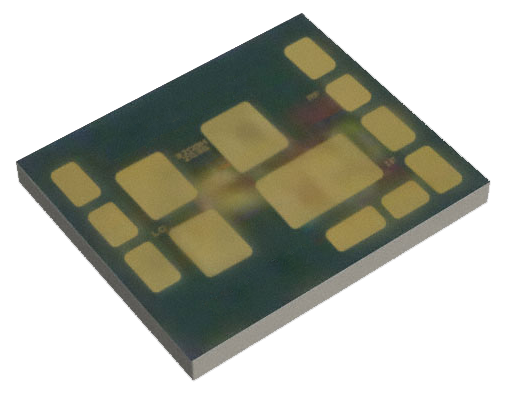

TDMX011037 is a double-balanced passive diode mixer MMIC qualified for use in space environments. The mixer offers low conversion loss, high linearity and a wide IF bandwidth. The double-balanced circuit configuration provides excellent port isolation while internal 50-ohm matching simplifies its application.

This mixer is well suited for high reliability space
applications including:
•  Ku/Ka band orbital transmit/receive modules
•  Satellite microwave communications

 What's New

New Mixer Line Added to Products

As Teledyne e2v HiRel continues to expand its RF product line, a new radiation tolerant, double-balanced Mixer at 18-46 GHz has been released. For K- and Ka-band communications links, it offers the space design community a Mixer with low conversion loss, high linearity, and a wide IF bandwidth. It is ideally suited for use in designing an up or down-conversion stage in signal chains for radar, satellite transponders, and related RF comms circuits in electronic warfare application.

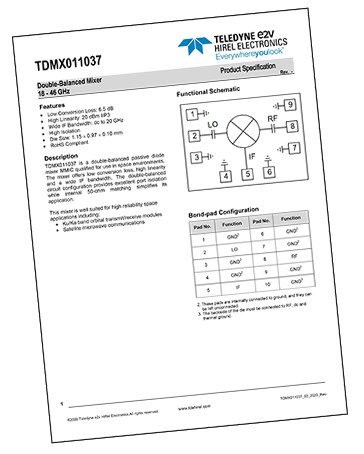

Download the datasheet

 Products

Part
No.

Data
sheet
Desc. Freq Range Min, RF/LO (MHz) Freq Range Max, RF/LO (MHz) Freq. Range Min, IF (MHz) Freq. Range Max, IF (MHz) Conversion Loss (dB) Input P1dB (dBm) IIP3  (dBm) LO Drive (dBm) Isolation LO-RF (dB) Pkg.
TDMX011037
Double-Balanced Mixer, 18 to 46 GHz 18000 46000 0 20000 6.5 12 20 15 35 DIE
