​Military & Space



As a global provider of advanced embedded semiconductors for Aerospace and Defense markets and applications, Teledyne e2v HiRel Electronics (HiRel) has developed a broad memory offering to address the high-reliability market.

Supporting extended environment operational requirements for many types of Commercial-Off-The-Shelf (COTS) memories. Memory offerings also include additional quality testing as required by the customer and other options such as  burn-in, temperature cycling, and various extended temperature ranges.

HiRel also offers full design, fabrication, and test capabilities for simple to complex custom Multichip Packages (MCP) for demanding Defense applications and holds an extensive inventory of obsoleted memories devices.  We can provide multiple solutions from our memory partners such as Micron, ISSI and Everspin.

 CBRAM

​EEPROM for Space

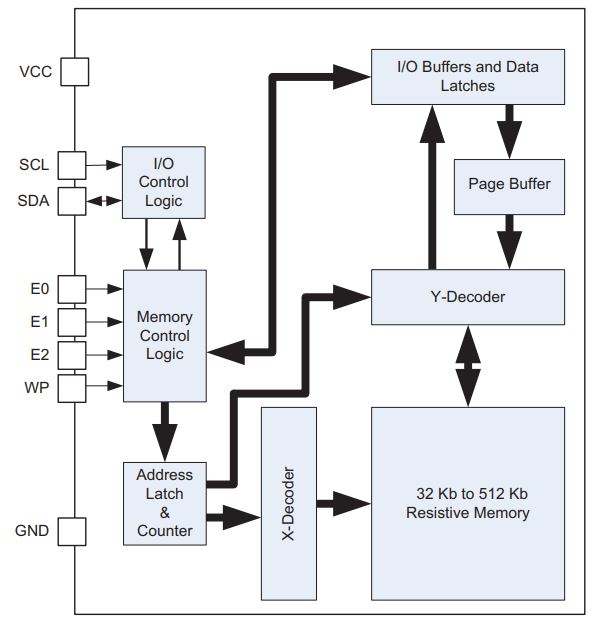

The TDRM24C512C-L 512 k-bit CBRAM part is continuing to secure design-ins and new sockets.

  • EEPROM-compatible non-volatile serial memory
  • 50 krad(Si) TID radiation toler​ance
  • Single low voltage supply 1.65V to 3.3V
  • 2-wire I2C compatible interface with a maximum clock frequency of 1 MHz.
  • Replacement for space EEPROMs with 30x lower ergy, lower write voltages, 60x faster write speeds.



Part no. Density Configuration Package Datasheet
TDRM24C512C-L
512KB 2 wire I2C CFP 10

 FIFO

TD72403 Resurrected FIFO Now Available

  • First-ln/First-Out Dual-Port memory
  • 64 x 4 organization
  • RAM-based FIFO with low falI-through time
  • Low-power consumption — Active: 175 mW (typ.)
  • Maximum shift frequency — 10 MHz
  • Military MlL-PRF-38535, Class level B processing
  • Military temperature range (–55°C to +125°C)

Availability Assured


Size

Description

Package

SMD_Number

Generic Part Numbers

Die Mfg

Speed (ns)

256 bit

64 x 5

DIP

N/A

TD72403L

QP SEMI

40

512 bit

64 x 8

DIP, LCC, FP

5962-89664

CY7C408A

Cypress

15, 25

4K

512 x 9

0.6 DIP, 0.3 DIP, LCC, FP

5962-89863

CY7C420

CY7C421

Cypress

25, 30, 40, 50, 65,

80

9K

1K x 9

0.6 DIP, 0.3 DIP, LCC, FP

5962-91585

CY7C424

CY7C425

Cypress

30, 40, 50, 65, 80, 120

18K

2K x 9

0.6 DIP, 0.3 DIP, LCC, FP

5962-88669

CY7C428

CY7C429

Cypress

20, 25, 30, 40, 50, 65, 80

36K

4K X 9

0.6 DIP, 0.3 DIP, LCC, FP

5962-90715

CY7C432

CY7C433

Cypress

20, 30, 40, 50, 65, 80, 120

72K

8K x 9

0.6 DIP, 0.3 DIP, LCC

5962-91677

CY7C460A

Cypress

30, 50, 80

144K

16K x 9

0.6 DIP, 0.3 DIP,

LCC, FP

5962-93177

CY7C462A

Cypress

20, 30, 50

288K

32K x 9

0.6 DIP, LCC

5962-93152

CY7C464A

Cypress

15, 20, 25, 40

576K

64K x 9

LCC

5962-99615

CY7C466A

Cypress

15, 25​

 MCM

Part no.

Density

Memory type

Configuration

Package

Datasheet

EVS32M16T-5B

1GB

MRAM

2x 512MB

TSOPP 66 stack


EVS5A16B

32MB

MRAM

16x 128KB

TSOP 54 stack

​​

 DDR

Using our semiconductor partnerships, we can support life cycle management, re-balling service, re-packaging, extended temperature product options and many new technologies.

Using our test capabilities, we can provide memories with extended performance thresholds including military, commercial-industrial, and extended-industrial temperature ranges. If requested, we can also perform additional burn-in and temperature cycling.

Part number

Description

Density

Width

Package

MT48LC8M16A2TG-75 IT:G

SDRAM

128Mb

X16

54-pin TSOP

MT48LC16M16A2TG-75 IT:D

SDRAM

256Mb

X16

54-pin TSOP

MT46V32M16FN-6 IT:F

DDR SDRAM

512Mb

X16

60-ball FBGA

MT41J64M16JT-15E AAT:G

DDR3 SDRAM

1Gb

X16

60-ball FBGA

MT47H64M16HW-3IT:H

DDR 2 SDRAM

1Gb

X16

84-ball FBGA

 SRAM

Size

Description

Package

SMD_Number

Generic Part Numbers

Die Mfg

Speed (ns)

64 bit

16 X 4

DIP, FP

86025

29705

AMD

30

8K

1K x 8

DIP, 48LCC,
52LCC,
FP

5962-86875

CY7C130
CY7C131

Cypress

35, 45, 55, 70, 90

16K

2K x 8

DIP, 48LCC,
52LCC,
FP

5962-90620

CY7C132
CY7C136

Cypress

35, 45, 55

32K

2K x 16

PGA, CQFP

5962-88610

QP7133SA

QP Semi

55, 70, 90

32K

2K x 16

PGA, CQFP

5962-88665

QP7133LA

QP Semi

35, 45, 55, 70

64K

4K x 16

PGA, CQFP

5962-91662

QP7024

QP Semi

35, 45, 55, 70

128K

8K x 16

PGA, CQFP

5962-91617

QP7025

QP Semi

35, 45, 55, 70

 PROM

​PROM - BiPolar

Size

Description

Package

SMD Number

Part Number

Die Mfg

Speed (ns)

1K

256 x 4 OC

DIP, FP

M38510/203

82S126

Philips

35, 75

82S126A

QP Semi

4K

1K x 4 TS

DIP, FP, LCC

M38510/206

82S137

Philips

55, 85

82S137A

4K

512 x 8

DIP, FP, LCC

78016

82S141

Philips

90

4K

512 x 8

DIP, FP

M38510/208

82S115

Philips

90

82S141

4K

512 x 8

DIP

N/A

82S147

Philips

45, 55 75,

82S147A

82S147B

4K

512 x 8

DIP

N/A

R29623

Raytheon

75, 100

8K

1K x 8

DIP, FP

M38510/209

82S181

Philips

50, 55, 90

5962-03202

82S181A

8K

1K X 8

PS DIP, FP, LCC

79024

R29633

Raytheon

75, 90

8K

2K x 4

DIP, FP

M38510/209

82S185

Philips

55, 90, 125

82S185A

8K

2K x 4

DIP

N/A

R29653

Raytheon

90, 105

16K

2K x 8 TS

DIP, FP, LCC

M38510/210

82S191

QP Semi

30, 50, 55, 100

82S191A

16K

2K x 8

DIP, LCC

M38510/210

R29681

Raytheon

85, 120

16K

2K x 8

DIP, LCC

N/A

R29683

Raytheon

85, 120

32K

4K x 8

DIP, FP, LCC

82008

R29771

Raytheon

95

32K

4K x 8

DIP, FP, LCC

N/A

R29773

Raytheon

8

PROM - CMOS

Size Description Package SMD_Number Part Number Die Mfg Speed (ns)
4K 512 x 8 Registered (OTP) DIP, LCC 5962-88518
QY7C225A
QP7C225A
Cypress
QP Semi
25, 30, 35, 40
8K 1K x 8 Registered (OTP) DIP, LCC, FP 5962-88636
CY7C235
CY7C235A
QP7C235A
Cypress
QP Semi
25, 30, 40
8K 1K x 8 (OTP) DIP, LCC, FP 5962-87651
CY7C281A
CY7C282A
QP7C281A
QP7C282A
QP Semi 30, 45
16K 2K x 8 DIP, LCC, FP 5962-87650
CY7C291A
CY7C292A
QP7C291A
QP7C292A
WS57C291C
Cypress
QP Semi
Waferscale
25, 35, 45, 50, 55
16K 2K x 8 (OTP) DIP, LCC, FP 5962-88734
CY7C291A
CY7C292A
QP7C291A QP7C292A
WS57C191C
WS57C291C
QP Semi 25, 35, 45, 55
16K 2K x 8 Registered DIP, LCC, FP 5962-89815
CY7C245A
QP7C245A
WS57C45
Cypress
QP Semi
Waferscale
18, 25, 35
16K 2K x 8 Registered DIP, LCC, FP 5962-87529
CY7C245A
QP7C245A
WS57C46
Cypress
QP Semi
Waferscale
35, 45
16K 2K x 8 Registered (OTP) DIP, LCC, FP 5962-88735
CY7C245
CY7C245A
QP7C245A
WS57C45
Cypress
QP Semi
Waferscale
25, 35, 45
32K 4K x 8 DIP, LCC, FP 5962-90658 57C43C Waferscale 35, 45, 55, 70
64K 8K x 8 DIP, LCC, FP 5962-87515
CY7C261
CY7C263
CY7C264
QP7C261
QP7C263
QP7C264
WS57C49C
Cypress
QP Semi
Waferscale
25, 35, 45, 55 70, 90
64K  8K x 8 (OTP) DIP, LCC, FP 5962-90803
CY7C261
CY7C263
CY7C264
QP7C261
QP7C263
QP7C264
WS57C49C
Cypress
QP Semi
Waferscale
25, 35, 45, 55
64K 8K x 8 Registered DIP, LCC 5962-89484 CY7C265 Cypress 15, 25, 50
64K 8K x 8 Registered (OTP) DIP, LCC, FP 5962-89967 CY7C265 Cypress 18, 25, 50, 60
64K 8K x 8 Registered Diagnostic DIP, LCC 5962-90930 CY7C269 Cypress 15, 25, 50
64K 8K x 8 Registered Diagnostic (OTP) DIP, LCC, FP 5962-90831 CY7C269 Cypress 18, 25, 50, 60
128K 16K x 8 DIP, LCC 5962-89537 CY7C251 Cypress 45, 55, 65
256K 32K x 8 Registered DIP, LCC, FP 5962-91744 CY7C277 Cypress 40, 50
256K 32K x 8 Registered (OTP) DIP, LCC, FP 5962-92155 CY7C277 Cypress 40, 50
256K 32K x 8 DIP, LCC, FP 5962-89817
QP7C271
CY7C274
QP7C271
Cypress
QP Semi
35, 45, 55
256K 32K x 8 (OTP) DIP, LCC, FP 5962-93166
CY7C271
CY7C274
QP7C271
Cypress
QP Semi
35, 45, 55
512K
64K x 8
Registered
DIP, LCC 5962-90913
CY7C287
QP7C287
Cypress
QP Semi
55, 65
512K 64K x 8 Registered (OTP) DIP, LCC 5962-92065
CY7C287
QP7C287
Cypress
QP Semi
55, 65

EPROM - EEPROM

Size Desc. Package SMD
Number
Generic Part Numbers
Die Mfg Speed (ns)
64K 8K x 8 DIP, LCC 85102 27C64QP27C64 AMDQP Semi 70, 90, 120, 150, 200, 250, 350
128K 16K x 8 DIP, LCC 5962-87661 27C128QP27C128WS57C128 AMDQP SemiWaferscale 70, 90, 120, 150, 170, 200, 250, 300
256K 32K x 8 DIP, LCC 5962-86063 AT27C256QP27C256WS27C25657C256 AtmelQP SemiWaferscale 45, 55, 70, 90, 120, 150, 170, 200, 250, 300
512K 64K x 8 DIP, LCC 5962-87648 AT27C512R Atmel 70, 90, 120, 150, 200, 250
1M 128K x 8 DIP, LCC 5962-89614 AT27C010WS27CO10WS57CO10 AtmelWaferscale  90, 120, 150, 170, 200, 250, 300
1M 64K x 16 DIP, LCC, FP 5962-86805 AT27C1024 Atmel 90, 120, 150, 170, 200, 250, 300
2M 256K x 8 DIP, LCC 5962-90912 AT27C020 Atmel 150, 200, 250
4M 512K x 8 DIP, LCC 5962-91752 AT27C040 Atmel 120, 150, 170, 200, 250

CMOS EEPROM

SizeDescriptionPackageSMD NumberGeneric Part NumberDie MfgSpeed (ns)
64K8K x 8DIP, LCC5962-87514AT28C64BAtmel90, 120,
150, 200, 250, 300, 350



















​​
