AXIOM-X Small Form Factor Satellite Modem Card

Teledyne Paradise Datacom introduces the AXIOM-X satellite modem card for point-to-point (P2P) and point-to-multipoint (P2MP) networks.

AXIOM-X features a new app. for control

using phone, tablet or computer

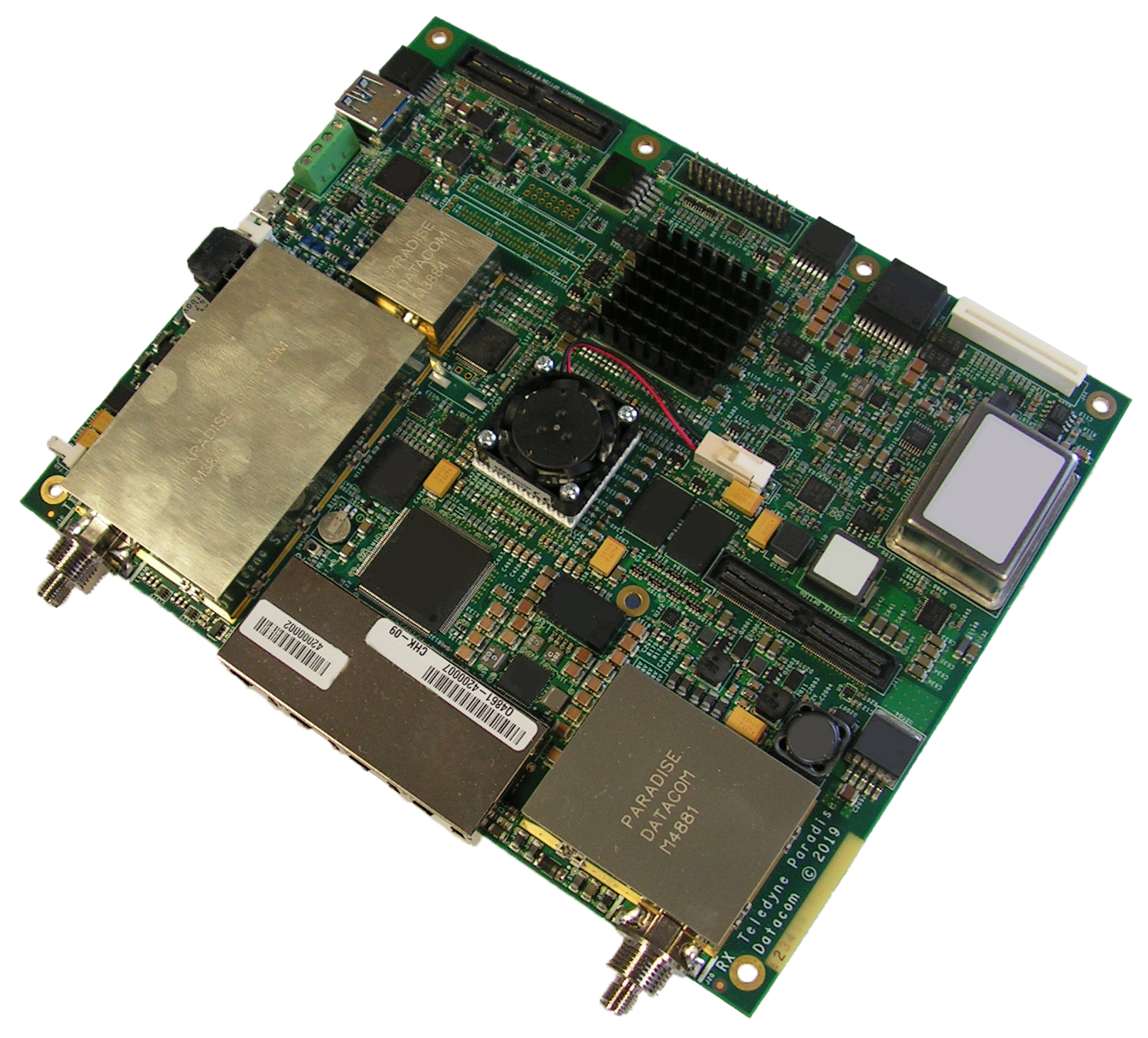

The AXIOM-X satellite modem card is a compact, powerful, IP centric, single-board satellite modem router designed for simple mechanical integration into OEM products, for portable communications and communications-on-the-move. Physically small with low power consumption does not limit the AXIOM-X, which is capable of supporting up to 575Mbps of aggregate throughput and 160,000 IP packets per second. It also supports L2 bridging and L3 routing with full QoS and Traffic Shaping.

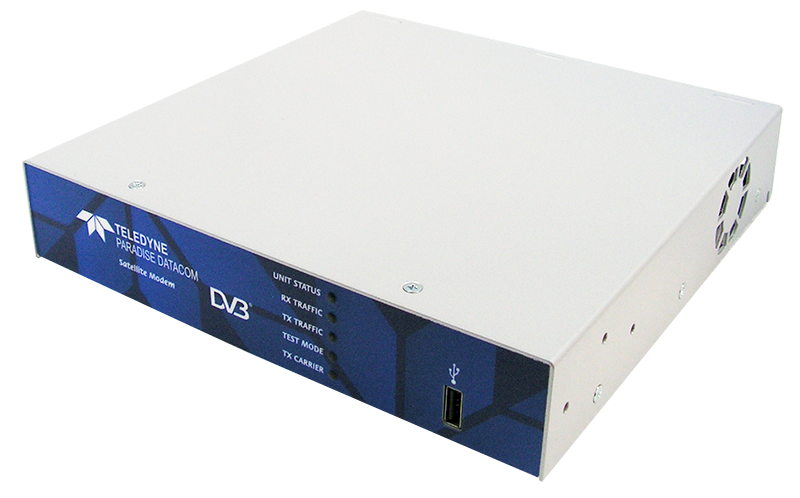

The AXIOM-X modem card M&C is via an intuitive Ethernet based web browser that is equally at home when using a tablet, Mobile or laptop PC. The unit has an option to connect a membrane with integrated LED’s for easy visual status and a fan. The AXIOM-X satellite modem card can also be provided in a small compact chassis with a separate BUC PSU.

This new modem has enhanced Doppler performance for comms-on-the-move with LEO/MEO constellations.

A version of the card, the AXIOM-X Encryption, is also available. It offers TCP/IP packet payload encryption using symmetric AES with 256-bit keys.

Datasheet, AXIOM-X Satellite Modem Card

Datasheet, AXIOM-X Encryption Satellite Modem Card

Features

25 to 33W power consumption including Eco mode for reduced bit rates under 25Mbps
Bandwidth savings: DVB-S2X, ACM, TCP acceleration with header and payload compression
The intuitive M&C system is equally user-friendly whether on a laptop PC, Mobile, or tablet
The card also supports an extended operating temperature range of -40º to +85º C
At 184mm x 152mm, the card is 60% of the size of the Paradise benchmark Q-Lite™ OEM card
Enhanced Doppler performance for LEO/MEOs
Extended L-band operation to 2,150MHz
Optimized spectral roll-offs, including 5%, 10%, and 20%
Enhanced Doppler performance - frequency shift up to ±330kHz, rate of
change up to ±100kHz/s (symbol rate dependent)
