Low Noise Amplifiers​

      Our LNAs are qualified for space and have the following features:

      • ​​Single Vdd bias supply (no negative voltage required)
      • Die Element Evaluation performed per wafer​
      • SCDs and custom testing fully supported
      • Flight die element evaluation completed per wafer
      • TID RLAT performed per wafer
      • Shipped from our certified/trusted Milpitas CA  Facility​
      ​ ​

      New RF Low Noise Amplifiers
      for LEO Space Applications

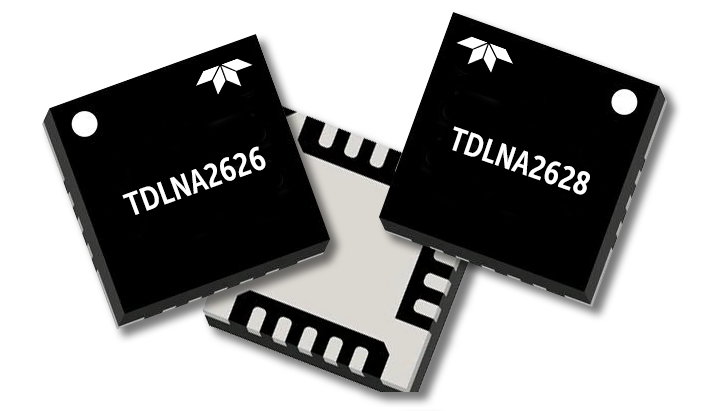

      Teledyne e2v HiRel announces the availability of a pair of low noise amplifiers for low earth orbit (LEO) space and other demanding applications. The TDLNA2626 and TDLNA2628 combine to cover 17 – 31.5 GHz frequency ranges and are built in a GaAs process technology which provides lower power consumption and high gain/bandwidth.

      ​

       LNA Products
      ​

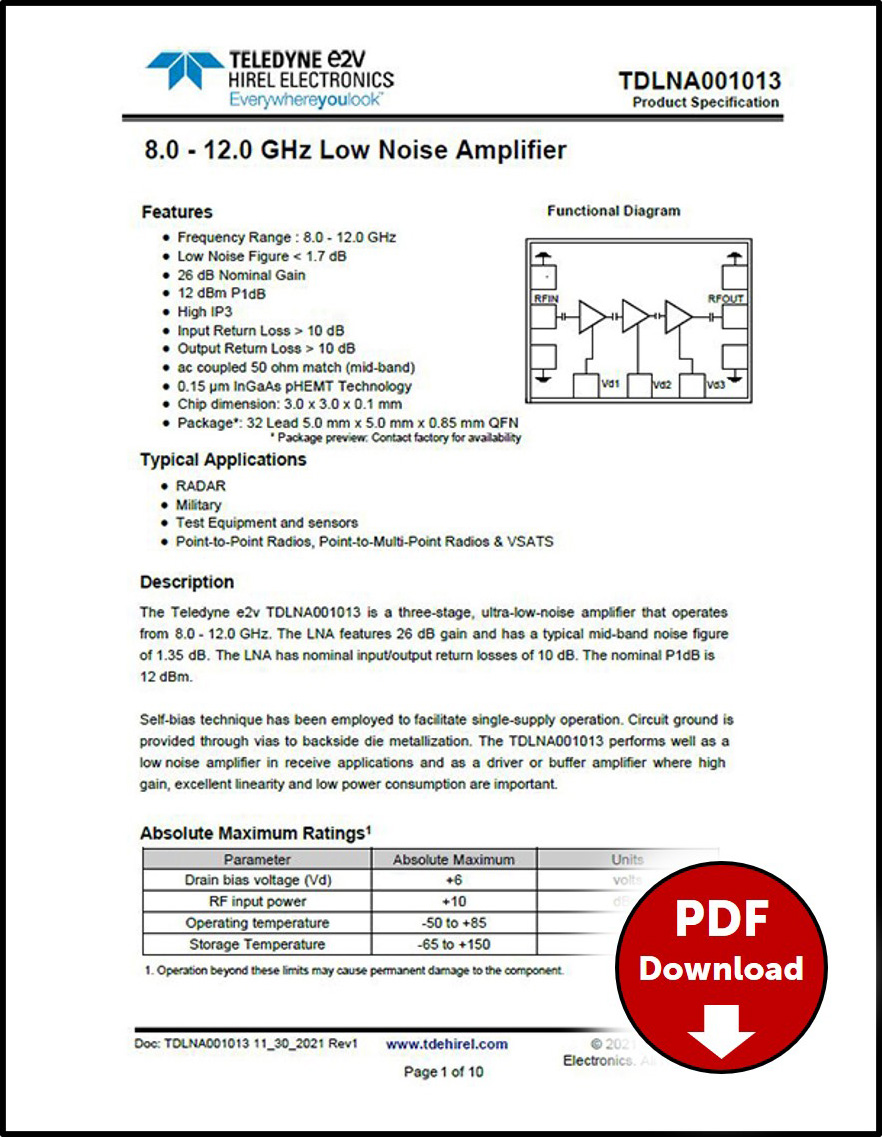

      Product ​Data
      sh​eet
      Min Freq
      (GHz)
      Max Freq
      (GHz)
      Noise Figure
      (dB​)
      P1dB

      (dBm)
      Gain
      (dBm)
      ​Vd
      (V)
      Icc
      (mA)
      		 ​Package
      TDLNA001013
      		 ​
      		 8.0​
      		 12.0​

      1.4​​​

      		 12
      		 26
      		 5​

      		 80​

      		 ​Wire Bond Die
      TDLNA2626
      		 ​​

      		 17​
      		 22​

      1.3​​​

      		 20
      		 25
      		 3.5​

      		 90​

      		 QFN
      TDLNA2628
      		 ​

      		 22​
      		 31.5​

      1.6

      		 19
      		 23
      		 3.5​

      		 90​

      		 ​QFN
      TDLNA002093SEP
      		 ​​​

      		 1.0​
      		 6.0

      .37​​​

      		 19
      		 21
      		 5​

      		 55

      		 DFN


      ​
      		 ​
      ​

      ​Gain Blocks

      The Teledyne TDGB010 cascadable broadband InGaP HBT MMIC amplifier family is a high-performance solution for general-purpose, high-reliability RF and microwave amplification needs. This 50-ohm gain block is based upon a mature and reliable Heterojunction Bipolar Transistor (HBT), Indium Gallium Phosphide (InGaP) process and utilizes proprietary MMIC design techniques.

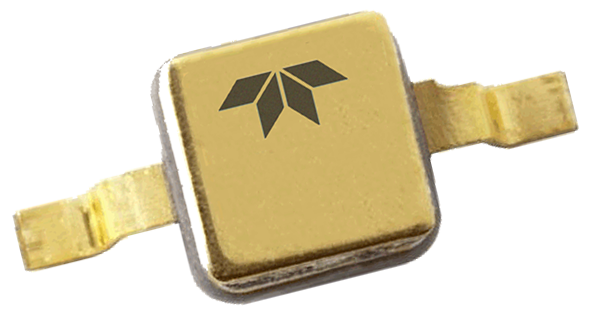

      New X-band Gain Blocks for Space

      Our new 10 GHz Gain Blocks for X-band provide our customers with a standard amplifier solution covering L-band through X-band, simplifying component procurement for space and defense flight applications.  These Gain Blocks extend the performance of space-qualified InGaP amp technology to X-band, while previous generations were limited to C-band.

       Gain Block Products
      ​
      Product ​Datashe​et
      Min Freq
      (GHz)
      		 Max Freq
      (GHz)      		 P1dB
      (dBm)      		 Gain
      (dB)      		 OIP3
      (dBm)      		 NF
      (dB)      		 Vd
      (V)      		 Icc
      (mA)
      TDGB010A ​​
      		0.1 10 14.3 13.6 28.0 5.5 3.85 50
      TDGB010B ​
      		0.1 10 15.2 16.5 28.0 5.5 3.8 50
      TDGB010C ​
      		0.1 10 16.3 18.4 28.0 5.5 4.2 50

      ​

      ​​​​
