REYNOLDS

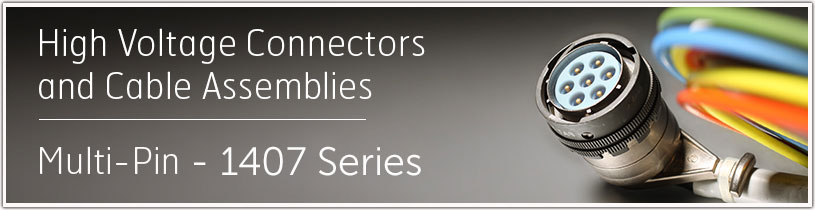

1407 Series​ 10 k​V​D​C ​•7-pin

Altitude Rating
70,000 ft (21.34 km)

Operating Temperature
-55º to 125ºC​​​​​​​

Current Rating
10 Amps

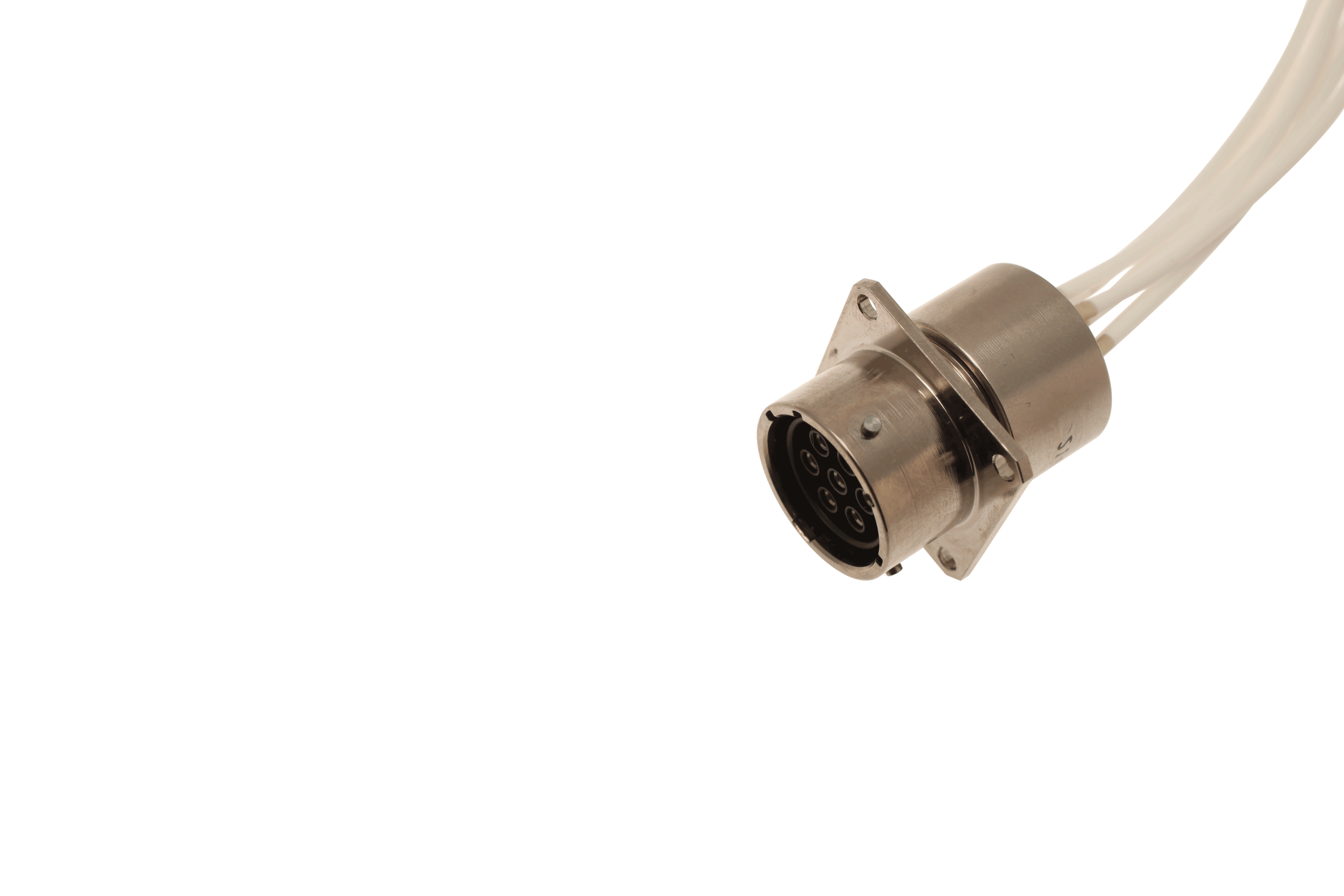

The 1407 Series is a ruggedized 7-pin, bayonet cou​pled connector family that has been used extensively in airborne Traveling Wave Tube (TWT) and TWT Amplifier (TWTA) applications. The 1407 comes in, both, shielded and non-shielded configurations with plug kits that are available for customer-fabricated cable assemblies using Teledyne Reynolds’ high voltage wire.

View Products  •  Download PDF
