Teledyne Reynolds (TRI) offers an extensive selection of single pin high voltage connectors and cable assemblies, some of which have been in production for more than 60 years, reflecting TRI's relentless commitment to engineering, quality and customer service.

TRI leads the connector industry worldwide in the design of high voltage connectors and cable assemblies rated for use at voltages from 5 kVDC to 50 kVDC at altitudes of 70,000 feet (21.34 km) and above while exposed to temperatures as low as -55°C and up to 125°C.  While not all connector designs offerred by TRI in this website are designed to operate at those extremes, all will perform with a high degree of reliability when operated as specified.

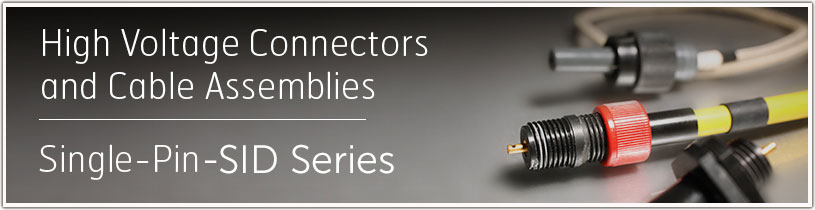

Single-Pin SID Series

​SID Series​​​​•​​15 k​VD​C

Altitude Rating
70,000 ft (21.34 km)

Operating Temperature
-40º to 95ºC​​​​​​​

Current Rating
5 Amps

This series of push-on/pull-off Silicone In-line Disconnect (SID) connectors provides a reliable 15 kVDC high voltage connection for use in military and aerospace applications. In addition to the SID Series' unique interface sealing system allowing the mated connectors to perform well under vibration, shock, altitude and temperature extremes, it also provides excellent corona (partial discharge) characteristics in pulsed DC and AC applications. ​​

Features include:
  • Available as co​nnector kits, also called bag assemblies, to allow for assembly at the customer's location or field installation
  • Pre-terminated and tested cable assemblies built to length for customers that prefer a complete solution
  • Connectors that use Teledyne Reynolds' patented Advanced Interface Sealing System™. Technologically advanced, these connectors represent the state-of-the-art in high voltage connector design and manufacture.
