Teledyne Reynolds (TRI) offers an extensive selection of single pin high voltage connectors and cable assemblies, some of which have been in production for more than 60 years, reflecting TRI's relentless commitment to engineering, quality and customer service.

TRI leads the connector industry worldwide in the design of high voltage connectors and cable assemblies rated for use at voltages from 5 kVDC to 50 kVDC at altitudes of 70,000 feet (21.34 km) and above while exposed to temperatures as low as -55°C and up to 125°C.  While not all connector designs offerred by TRI in this website are designed to operate at those extremes, all will perform with a high degree of reliability when operated as specified.

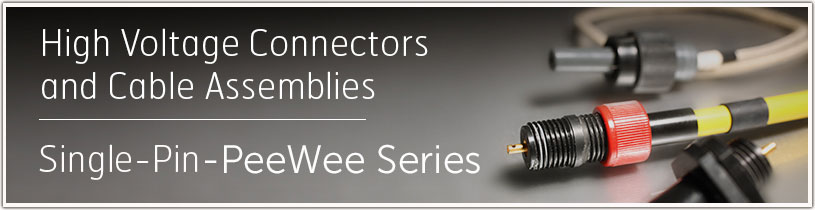

Single-Pin PeeWee Series

PeeWee Series​​​•​12 k​VD​C

Altitude Rating
70,000 ft (21.34 km)

Operating Temperature
-55º to 125ºC​​​​​​​

Current Rating
5 Amps

The PeeWee Series is one of a family of subminiature, high voltage connectors for use in applications where dense electronic packaging is required. The PeeWee Series uses the Teledyne Reynolds' patented Advanced Interface Sealing SystemTM. This is a unique method of sealing the high voltage interface at reduced atmospheric pressure to enable the series to be rated at 12 kVDC at 70,000 ft with a temperature range of -55° to 125°C.​

By using PeeWee connectors, it is possible to package or re-package a high voltage power supply into multiple modules which can be easily and reliably mated and un-mated with one another. This packaging technique permits the pre-testing of individual modules as they are being manufactured and the ability to replace modules or perform routine maintenance in the field, when necessary.

Features Include:
  • Available as co​nnector kits, also called bag assemblies, to allow for assembly at the customer's location or field installation
  • Pre-terminated and tested cable assemblies built to length for customers that prefer a complete solution
  • Connectors that use Teledyne Reynolds' patented Advanced Interface Sealing System™. Technologically advanced, these connectors represent the state-of-the-art in high voltage connector design and manufacture.

LGH™  is a trademark of Tyco Amp, Inc. and Coolanol is a registered trademark of Exxon Mobil Corporation
