Teledyne Reynolds (TRI) offers an extensive selection of single pin high voltage connectors and cable assemblies, some of which have been in production for more than 60 years, reflecting TRI's relentless commitment to engineering, quality and customer service.

TRI leads the connector industry worldwide in the design of high voltage connectors and cable assemblies rated for use at voltages from 5 kVDC to 50 kVDC at altitudes of 70,000 feet (21.34 km) and above while exposed to temperatures as low as -55°C and up to 125°C.  While not all connector designs offerred by TRI in this website are designed to operate at those extremes, all will perform with a high degree of reliability when operated as specified.

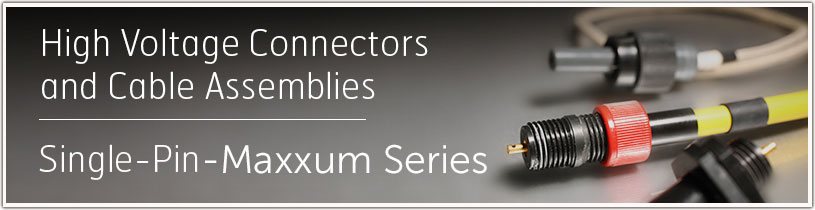

Single-Pin Maxxum Series

Maxxum Series​​•25 k​VD​C

Altitude Rating
70,000 ft (21.34 km)

Operating Temperature
-55º to 125ºC​​​​​​​

Current Rating
13 Amps

Maxxum Series connectors are robust in their construction, using stainless steel for the threaded coupling nut and body while also incorporating Teledyne Reynolds' patented Advanced Interface Sealing SystemTM for unmatched electrical performance at reduced atmospheric pressure. In addition, the cable assemblies use FEP insulated cable with a double braid crimped directly to the stainless steel body of the connector.

This series is ideally suited for use as a high power, TWT collector interconnect or in E-beam inspection equipment where a low partial discharge design and hermetic feedthrough are required.

Maxxum Series receptacles come in, both, molded plastic and hermetic ceramic-to-metal brazed options.

Features include:
  • Available as co​nnector kits, also called bag assemblies, to allow for assembly at the customer's location or field installation
  • Pre-terminated and tested cable assemblies built to length for customers that prefer a complete solution
  • Connectors that use Teledyne Reynolds' patented Advanced Interface Sealing System™. Technologically advanced, these connectors represent the state-of-the-art in high voltage connector design and manufacture.
LGH™  is a trademark of Tyco Amp, Inc. and Coolanol is a registered trademark of Exxon Mobil Corporation
