Teledyne Reynolds (TRI) offers an extensive selection of single pin high voltage connectors and cable assemblies, some of which have been in production for more than 60 years, reflecting TRI's relentless commitment to engineering, quality and customer service.
TRI leads the connector industry worldwide in the design of high voltage connectors and cable assemblies rated for use at voltages from 5 kVDC to 50 kVDC at altitudes of 70,000 feet (21.34 km) and above while exposed to temperatures as low as -55°C and up to 125°C.  While not all connector designs offerred by TRI in this website are designed to operate at those extremes, all will perform with a high degree of reliability when operated as specified.

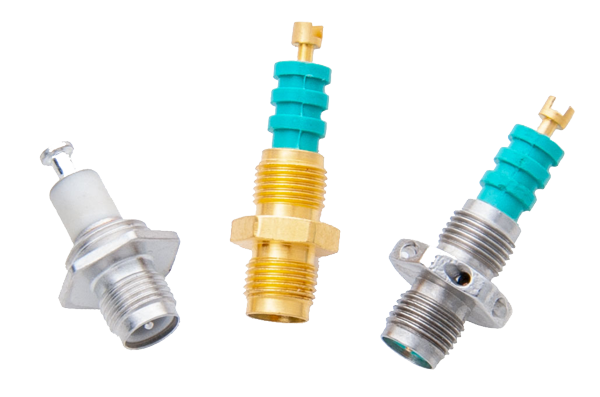

600-Serties-PSD-crp-II.pngSingle-Pin 600/610 Series​​

​600​​​​​•5 k​VD​C​•Se​a Lev​el​​​
600 SL•​10 k​VDC​•70,000 ft (21.34 km)
​610•​5 k​VDC​•​​Sea Lev​el​​​
610 SL10 k​​VDC​•​70,000 ​ft (21.34 km)​

​​Operating Temperature
-55º to 125ºC​​​​​​​

Current Rating
5 Amps

A complete line of subminiature, highly reliable coaxial high voltage connectors for Aerospace and Defense use.  Small size for applications with tight space constraints, rated for operation at 70,000 feet. Hard vacuum of deep space shielded and non-shielded versions.
  • Available as co​nnector kits, also called bag assemblies, to allow for assembly at the customer's location or field installation
  • Pre-terminated and tested cable assemblies built to length for customers that prefer a complete solution
  • Connectors that use Teledyne Reynolds' patented Advanced Interface Sealing System™. Technologically advanced, these connectors represent the state-of-the-art in high voltage connector design and manufacture.

LGH™  is a trademark of Tyco Amp, Inc. and Coolanol is a registered trademark of Exxon Mobil Corporation
