Teledyne Reynolds (TRI) offers an extensive selection of single pin high voltage connectors and cable assemblies, some of which have been in production for more than 60 years, reflecting TRI's relentless commitment to engineering, quality and customer service.

TRI leads the connector industry worldwide in the design of high voltage connectors and cable assemblies rated for use at voltages from 5 kVDC to 50 kVDC at altitudes of 70,000 feet (21.34 km) and above while exposed to temperatures as low as -55°C and up to 125°C.  While not all connector designs offerred by TRI in this website are designed to operate at those extremes, all will perform with a high degree of reliability when operated as specified.

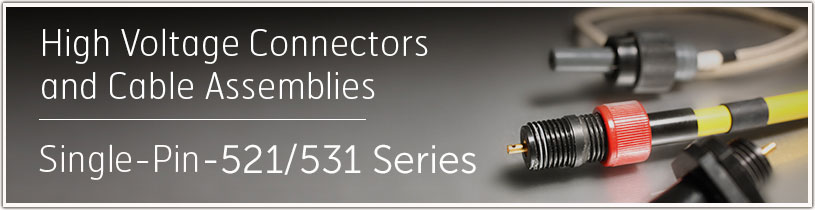

Single-Pin 521/531 Series​​


​531​ SL​​​​​•10 k​VD​C​•Se​a Lev​el​​​
531•​15 k​VDC​​•70,000 ft (21.34 km)
​521 SL •​20 k​VDC​•​​Sea Lev​el​​​
52125 k​​VDC​•​70,000 ​ft (21.34 km)​

​​Operating Temperature
-40º to 85ºC​​​​​​​

Current Rating
531, 531 SL  •  10 Amps
521, 521 SL  •  17 Amps

A series of high voltage connectors designed to minimize the risk of electrical shock through the use of recessed contacts. Ideal for laboratory and research applications, but also well suited for use in power supplies and other systems where reliable high voltage connections are essential.

Features include:
  • Available as co​nnector kits, also called bag assemblies, to allow for assembly at the customer's location or field installation
  • Pre-terminated and tested cable assemblies built to length for customers that prefer a complete solution
  • Connectors that use Teledyne Reynolds' patented Advanced Interface Sealing System™. Technologically advanced, these connectors represent the state-of-the-art in high voltage connector design and manufacture.

LGH™  is a trademark of Tyco Amp, Inc. and Coolanol is a registered trademark of Exxon Mobil Corporation


View Products •  Download PDF
