​​​Part NO.​​​  ​Description




      ​
 E3P2G​ ​​

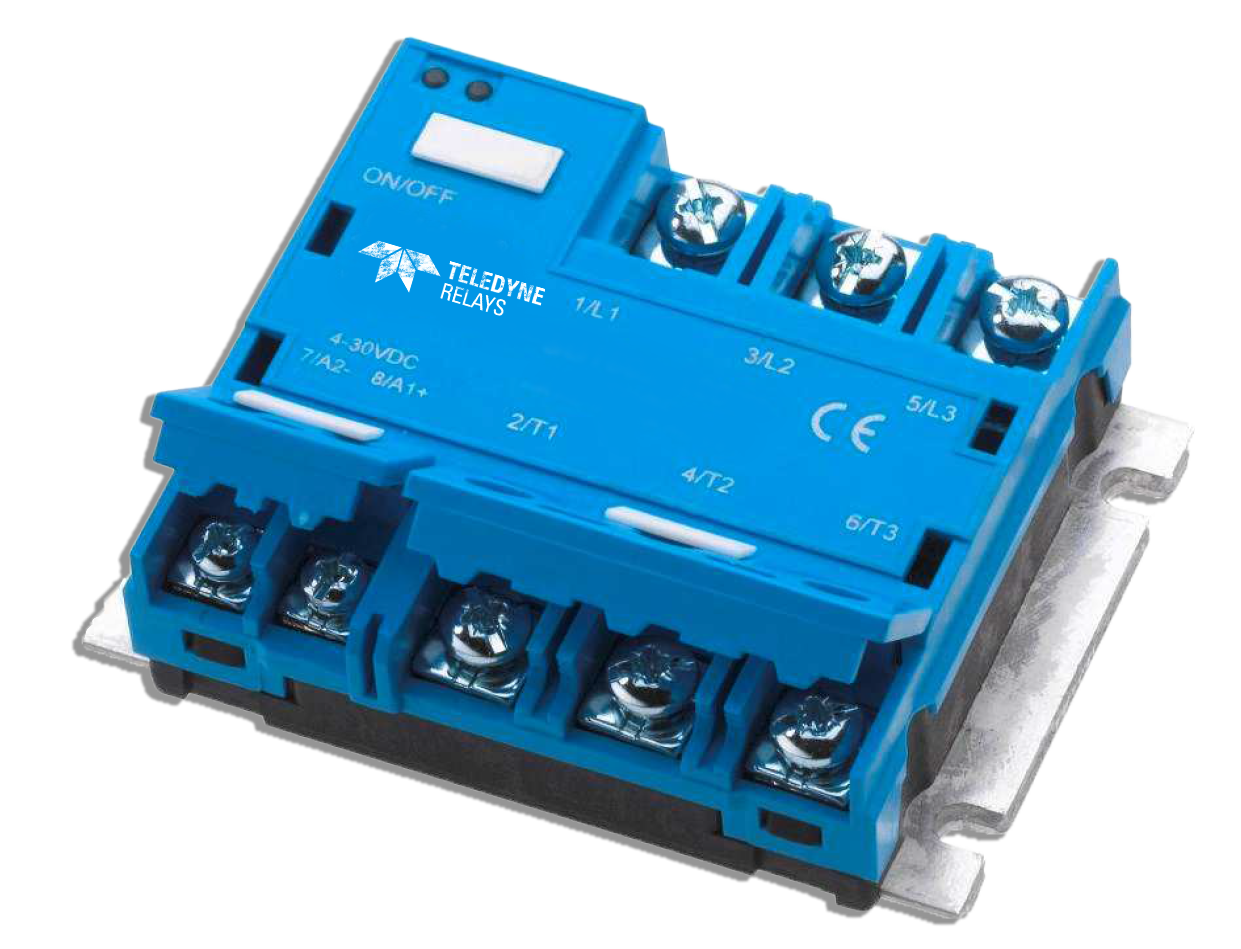

The E3P2G series, three-phase solid state relay is the 2nd generation of the discontinued E3P series. The new design incorporates a high efficiency back-to-back thyristor with direct copper bonding for a longer lifetime expectancy. Over-Voltage protection is provided internally with TVS diodes for the input and output. Additionally our -16 model is designed with an RC snubber and VDR for greater protection to the output to handle all types of loads. The industrial SSR utilizes optical isolation to protect the control from load transients for each phase and has tight zero-cross window for low EMI. A control status LED are standard on all models.​

Available options include:
E3P2G48D25           Load: 25A, 24-600Vrms ; Control: 4-30Vdc
E3P2G48D50           Load: 50A, 24-600Vrms ; Control: 4-30Vdc
E3P2G48D75           Load: 75A, 24-600Vrms ; Control: 4-30Vdc
E3P2G​48D75-16      Load: 75A, 24-520Vrms ; Control: 4-30Vdc ;
E3P48D75-16      ​    RC+VDR Output Protection





      ​
 E3PC​ ​​
The E3PC series is engineered to effortlessly manage diverse loads like heating elements, motors, and transformers. Capable of handling voltages of up to 600 VACrms, this relay incorporates a built-in varistor to ensure robust transient protection, making it suitable for demanding industrial applications. Enhancing reliability and load cycle capacity, three semiconductor power units are directly soldered onto the direct copper bonded (DCB) substrate. This SSR series offers both AC and DC-controlled versions, accompanied by a built-in LED status indicator for monitoring the applied control voltage.

Available options include:
E3PC60D25           Three Phase Output: 25A, 42-660VAC / Control: 4-32VDC​
E3PC60D55           Three Phase Output: 55A, 42-660VAC / Control: 4-32VDC
E3PC60A55           Three Phase Output: 55A, 42-660 VAC / Control: 24-275
                               VAC or 24-50 VDC

​​
DR2C ​& DR3C​ ​​
The DR2C & DR3C series is intended to replace mechanical contactors especially for high duty cycle applications. Package width ranges from 54 mm (3xDIN) and goes up to 70 mm with 2-pole and 3-pole switching options available, provided with an integrated heatsink and designed for DIN rail mounting. Apart from resistive and slightly inductive loads, this series is certified for motor switching with associated motor ratings. A green LED status indicates a control voltage presence. ​

Available options include:
DR2C60D25
2-pole switching / Output: 25A, 42-660 VAC / Control: 5-32Vdc
DR2C60A25
2-pole switching / Output: 25A, 42-660 VAC / Control: 20-275 VAC, 24-190 VDC
DR2C60D40B
2-pole switching / Output: 40A, 42-660 VAC / Control: 5-32Vdc
DR2C60A40B

2-pole switching / Output: 40A, 42-660 VAC / Control: 20-275 VAC, 24-190 VDC
DR3C60D30B
DR3C60D30B 3-Phase Out​put: 42-660 VAC, 30A / Control: 5-32 VDC​
DR3C60A30B
3-Phase Output: 42-660 VAC, 30A / Control: 20-275 VAC, 24-190VDC
DR3C60D65BBDF

3-Phase Output: 42-660 VAC, 65A / Control: 5-32 VDC / 24 VDC fan with OTP and EMR alarm
DR3C60A65BBAF
3-Phase Output: 42-660 VAC, 65A / Control: 20-275 VAC / 90 - 250 VAC, Integrated fan with OTP and EMR alarm



      ​
C3P ​​

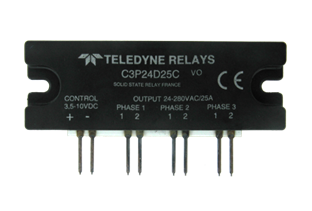

The Series C3P three-phase AC solid-state relays are designed to control medium amounts of power in three-phase applications. Optical isolation ensures complete protection of the C3P’s control circuit from load transients. The C3P’s compact plastic housing provides a low-cost alternative to large metallic three-phase contactors. The C3P is designed with heatsinking in mind. The ceramic baseplate provides excellent thermal performance. The relay’s tight zero-cross window greatly reduces EMI.​


Available options include:
C3P24D25            25A, 280 Vac
C3P24D25C         25A, 280 Vac
C3P24D25C/F1   25A, 280 Vac with 90° Bent Leads​
C3P24D25C/F     25A, 280 Vac 90° Bent Leads & Thermal Pad​

S3P ​​
The Series S3P relays are made up of three separate relays controlled by a common DC voltage control. They are designed to control 10A AC loads such as resistors and small motors on a mains from 12 to 440 Vac, either single- or three-phase. They are well suited for applications requiring compact size and low cost.​


Available options include:
S3P44D10     10A,440 Vac


​​​​
