Coaxial Transfer Switches

​Part No. ​Description

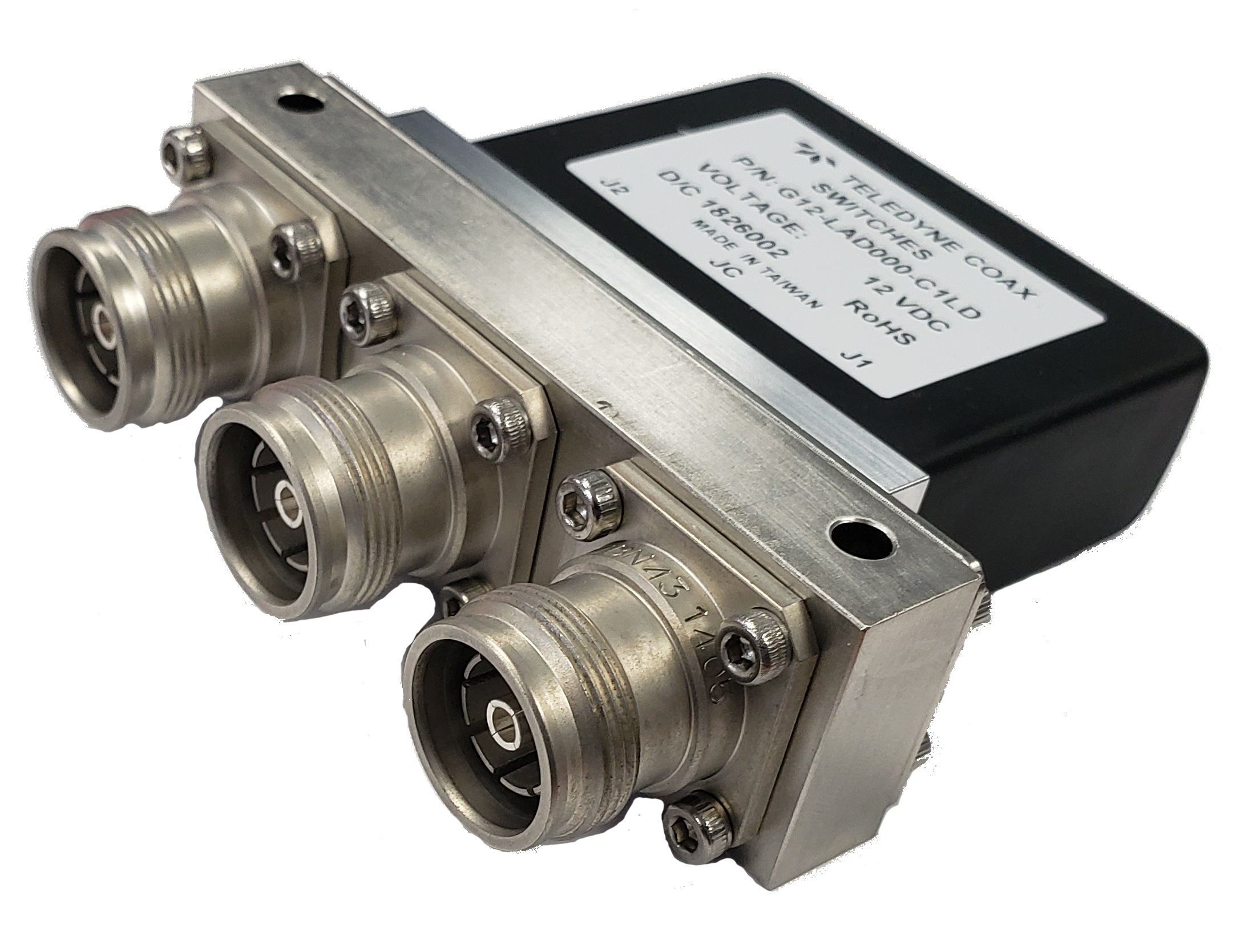

CCP-32G

​Latching, Low PIM, SPDT, 50Ω impedance
Available with 4.3-10 connectors
DC-3GHz


CCP-33G

Latching, Low PIM, SPDT, 50Ω impedance
Available with 4.3-10 connectors
DC-3GHz


CCP-33S

​Latching, Low PIM, SPDT, 50Ω impedance
Available with SMA connectors
DC-3GHz

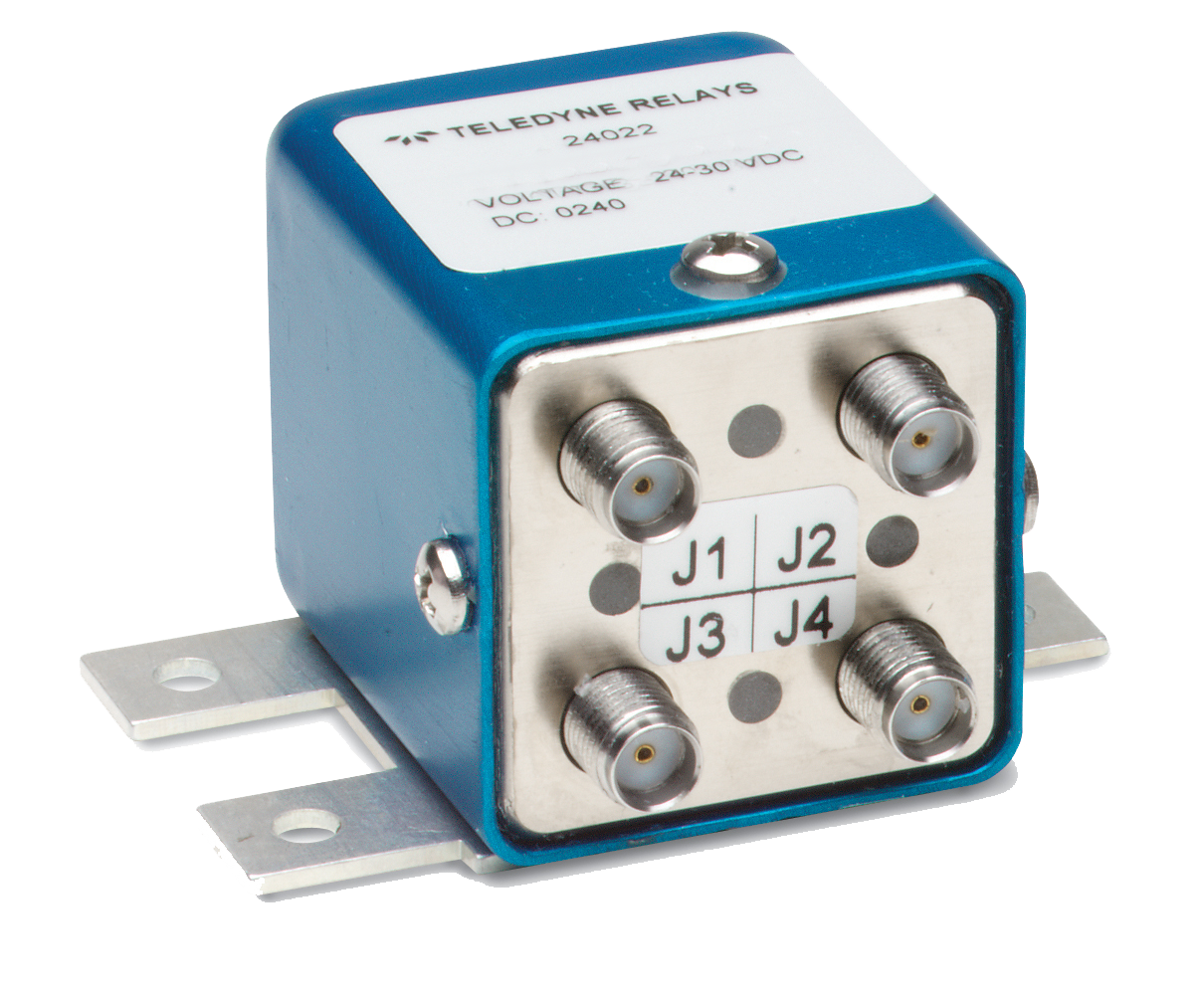

CCP-37S

​​Latching, Low PIM, Transfer Switch, 50Ω impedance
Available with SMA connectors
DC-3GHz​

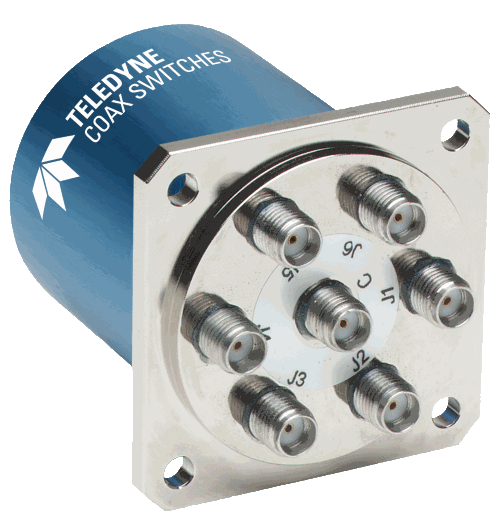

CCP-38S

​​Normally Open, Low PIM, SP3T, SP4T, or SP6T, Multi-Throw switch, 50Ω impedance​​
Available with SMA connectors
DC-3GHz


Failsafe        Latching

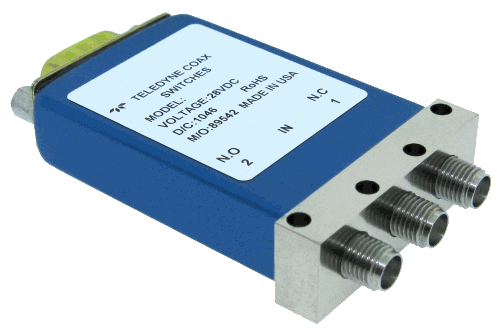

 CCP-32N

​Latching or Failsafe, Low PIM, SPDT, 50Ω impedance
Available with N connectors
DC-3GHz

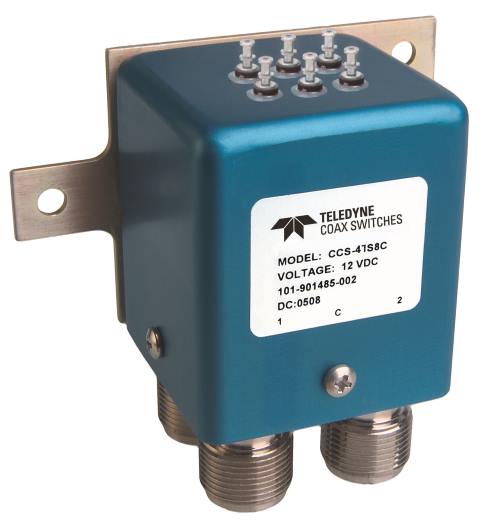

CCP-47N

​Normally Open, Low PIM, SP3T, SP4T, or SP6T, Multi-Throw switch, 50Ω impedance
Available with N connectors
DC-3GHz

CCP-18N

​Normally Open, Low PIM, SP3T, SP4T, or SP6T, Multi-Throw switch, 50Ω impedance
Available with N connectors
DC-3GHz

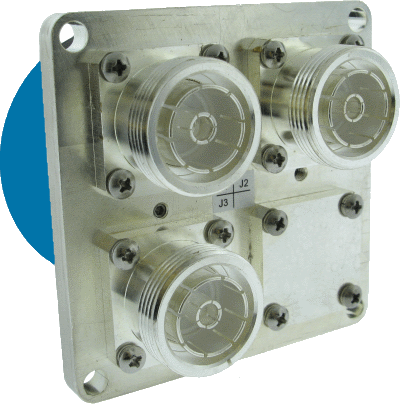

CCP-33D

​Failsafe, Low PIM, Transfer Switch, 50Ω impedance
Available with 7/16 DIN connectors
DC-3GHz

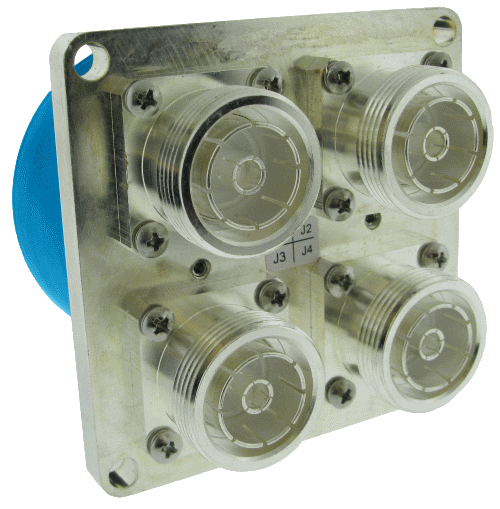

CCP-47D

​Failsafe, Low PIM, Transfer Switch, 50Ω impedance
Available with 7/16 DIN connectors
DC-3GHz


CCP-18D

​​Failsafe, Low PIM, SP3T or SP4T, Multi-Throw switch, 50Ω impedance
Available with 7/16 DIN connectors
DC-3GHz
