​RF Switch Matrices​​​​​​​​

For applications involving the test and measurement of multiple RF components, Teledyne Coax offers Custom Switch Matrix solutions to integrate multiple switches, along with additional components including filters, mixers, and attenuators, as required.

These Custom Switch Matrix units can contain SPDT, Transfer, or Multi-Throw Switches in either Multiple Input Multiple Output (MIMO) or Multiplexer (MUX) configurations.

Matrix units save the operator the time of tediously reconnecting multiple switch paths, by offering the ability to select multiple input and output path configurations, through an easy-to-use controller interface consisting of an LED, multi-character display, and keypad.

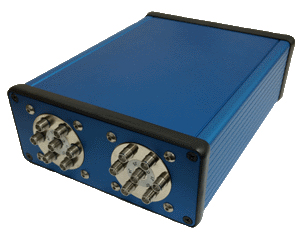

Also available, are Miniature Matrix units, which can house up to 4 SPDT, 4 Transfer, or 2 SP8T Multi-throw switches, and are easily controllable via a user interface that is compatible with major programming languages including LabVIEW, C/C++, Python, Java, etc..​​​​​​​ ​​

Teledyne's newest addition to the RF Switch Matrix series is the Modular Test System (MTS). The MTS is a 3U 19" chasis housing up to 8 modules. Each module can house up to 4 SPDT's, 2 Transfer Switches, or one SP6T Multi-Throw Switch. To add more switches, additional racks can be added, allowing up to 72 modules. The MTS contains a GUI and is also controllable via programming languages.​​​​​ ​​
