SPDT

Part NO . Description CAD Files S-Parameters

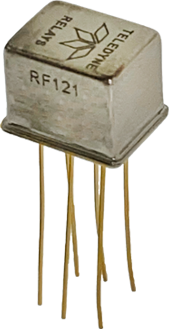

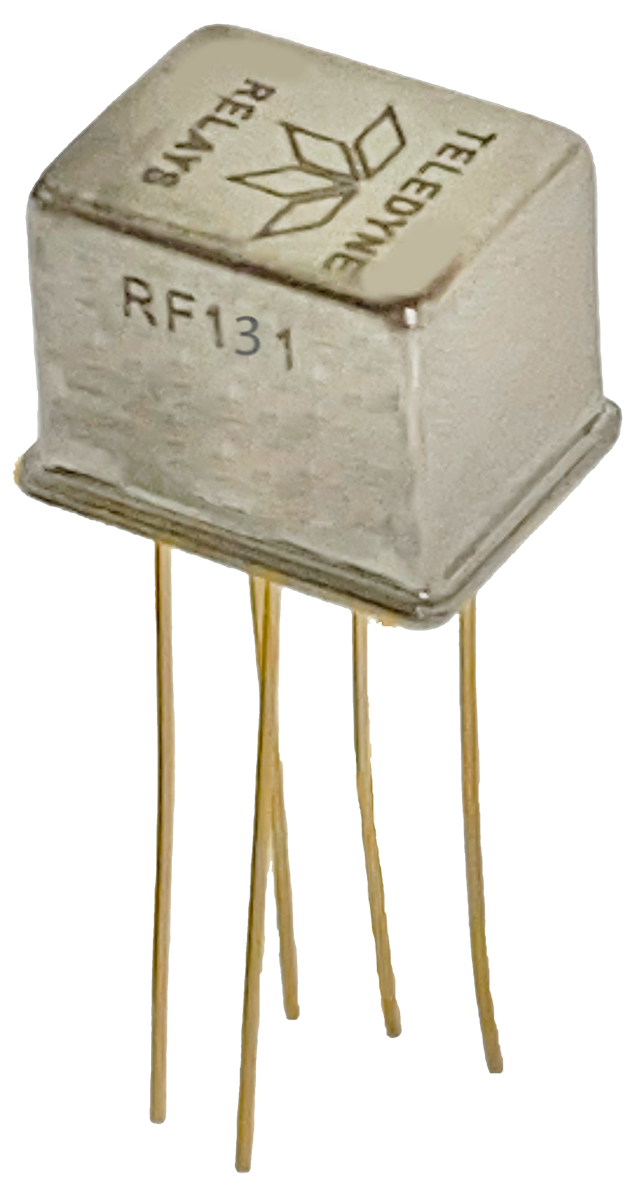

RF121, RF121R
12 GHz Latching SPDT

 Extended-Centigrid hermetically sealed package, through-hole mounted, magnetic-latching SPDT, with grounded contacts
Bandwidth: DC - 12GHz
Signal Integrity: 20Gbps

Available options include:
RF121 - common coil negative
RF121R  - common coil positive

Resistive: 0.25A /28Vdc











RF121



RF121R

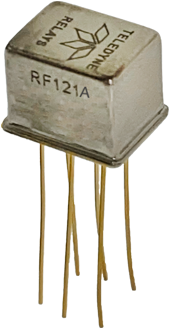

RF121A, RF121AR
12 GHz Latching SPDT

 Extended-Centigrid hermetically sealed package, through-hole mounted, magnetic-latching SPDT, with ungrounded contacts, and a common coil negative
Bandwidth: DC - 12GHz
Signal Integrity: 20Gbps

Available options include:
RF121AR  - common coil positive

Resistive: 0.25A /28Vdc

Contact Factory
RF121A


Contact Factory
RF121AR


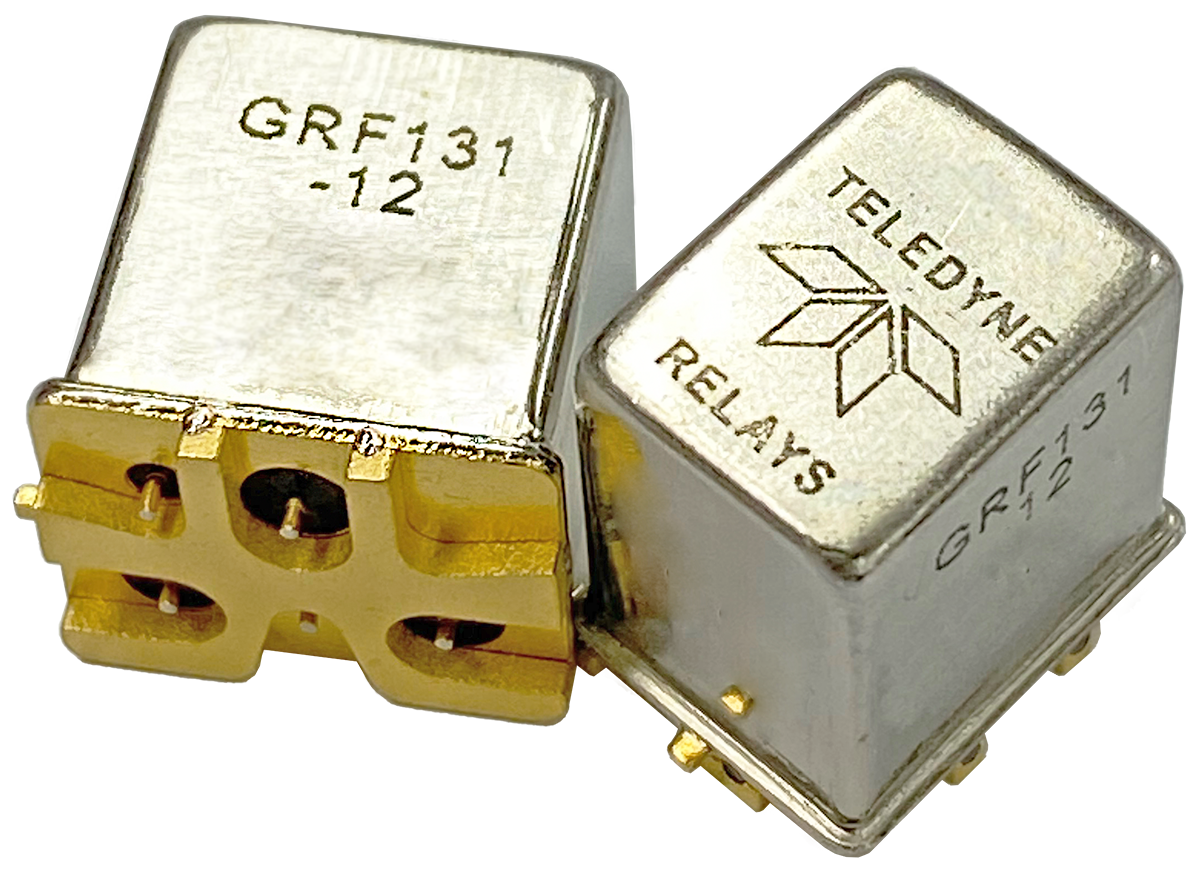

GRF121,  GRF121R
18 GHz Latching SPDT

 Extended- Centigrid hermetically sealed package, SMT straight-lead mounted, magnetic -latching SPDT, with grounded contacts, and a common coil negative
Bandwidth: DC - 18GHz
Signal Integrity: 40Gbps

Available options include:
 GRF121R  - common coil positive

Resistive: 0.25A /28Vdc


GRF121

Contact Factory
GRF121R


GRF121A, GR121AR
18 GHz Latching SPDT

 Extended-Centigrid hermetically sealed package, SMT straight-lead mounted, magnetic-latching SPDT, with ungrounded contacts, and a common coil negative

Bandwidth: DC - 18GHz
Signal Integrity: 40Gbps

Available options include:
GRF121AR  - common coil positive

Resistive: 0.25A /28Vdc


GRF121A

Contact Factory
GRF121AR

DPDT

Part NO . Description CAD Files S-Parameters

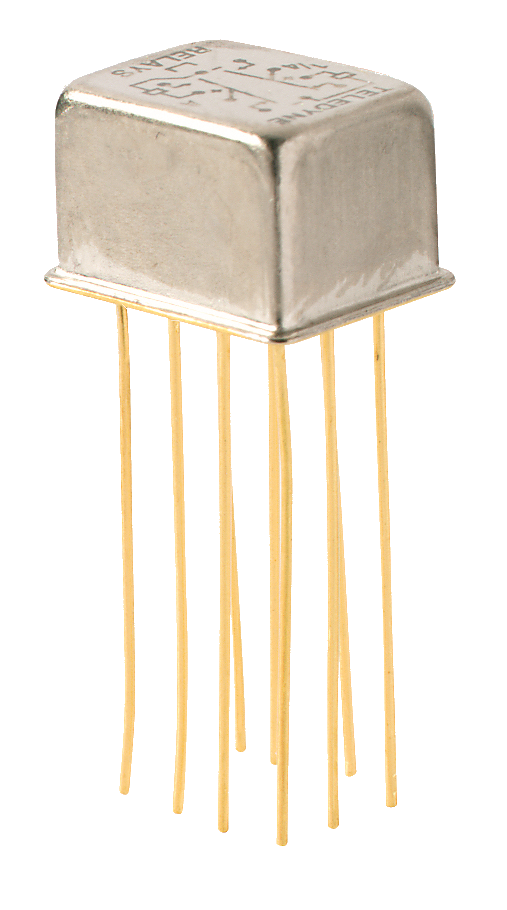

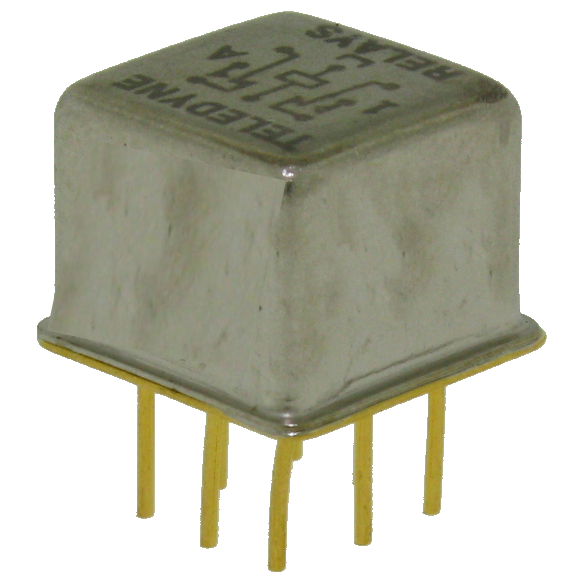

RF180

6 GHz Latching DPDT

Centigrid hermetically sealed package, through-hole mounted, magnetic-latching DPDT

Bandwidth: DC - 6GHz

Resistive: 0.25A /28Vdc

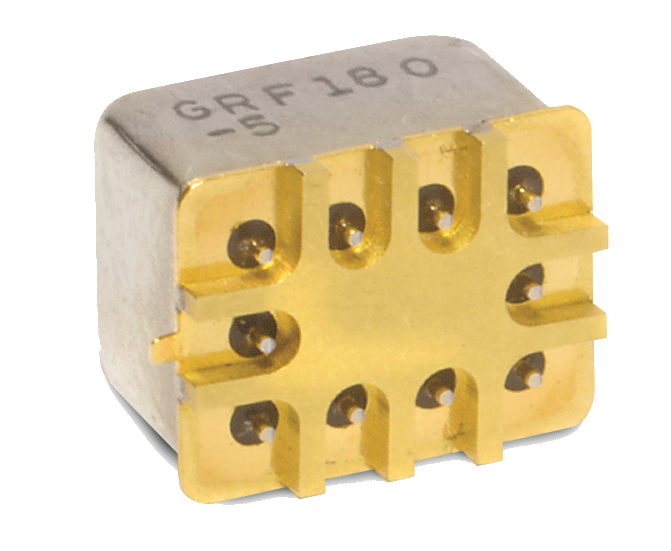

GRF180

6 GHz Latching DPDT

Centigrid hermetically sealed package, SMT straight-lead mounted, magnetic-latching DPDT

Bandwidth: DC - 6GHz


Resistive: 0.25A /28Vdc



   RF700, RF703

4 GHz Non-Latching DPDT

TO-5 hermetically sealed package, through-hole mounted, non-latching, DPDT, with high insertion loss repeatability

Bandwidth: DC - 4GHz

Available options:
RF703  - low power coil


Resistive: 1A /28Vdc





GRF700, GRF703

5 GHz Non-Latching DPDT

TO-5 hermetically sealed package, SMT straight-lead mounted, non-latching, DPDT, with high insertion loss repeatability

Bandwidth: DC - 5GHz

Available options include:
GRF703       - low power coil


Resistive: 1A /28Vdc
Contact Factory



GRF172

2.5 GHz Non-Latching DPDT

Centigrid hermetically sealed package, SMT straight-lead mounted, non-latching DPDT

Bandwidth: DC - 2.5GHz

Available options include:
GRF172D  - transient protection diode

Resistive: 1A /28Vdc



   RF100, RF103

3 GHz Non-Latching DPDT

Centigrid hermetically sealed package, through-hole mounted, non-latching DPDT, with high insertion loss repeatability

Bandwidth: DC - 3GHz

Available options include:
RF103  - low power coil



GRF100, GRF103

6 GHz Non-Latching DPDT

Centigrid hermetically sealed package, SMT straight-lead mounted, non-latching DPDT, with high insertion loss repeatability

Bandwidth: DC - 6GHz

Available options include:
GRF103  - low power coil

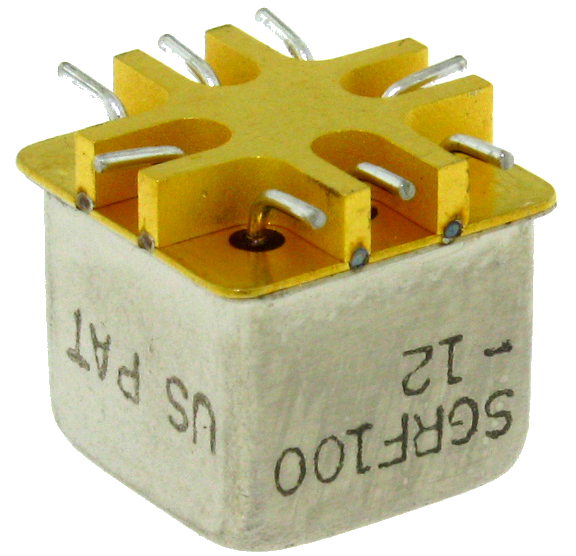

SGRF100, SGRF103

6 GHz Non-Latching DPDT

Centigrid hermetically sealed package, SMT J-lead mounted, non-latching DPDT, with high insertion loss repeatability

Bandwidth: DC - 6GHz

Available options include:
SGRF103  - low power coil







RF300, RF303

3 GHz Non-Latching DPDT

TO-5 hermetically sealed package, through-hole mounted, non -latching, DPDT, with high insertion loss repeatability

Bandwidth: DC - 3GHz
Signal Integrity up to 10Gbps

Available options include:
RF300D    - transient protection diode
RF300DD  - transient and reverse                              polarity protection diodes
RF303      - low power coil
RF303D    - low power coil, transient                          protection diode
RF303DD  low power coil, transient                           and reverse polarity                               protection diodes

Resistive: 1A /28Vdc





SRF300, SRF303

6 GHz Non-Latching DPDT

TO-5 hermetically sealed package, SMT J-lead mounted, non -latching, DPDT, with high insertion loss repeatability

Bandwidth: DC - 6GHz
Signal Integrity up to 18Gbps

Available options include:
SRF300D    - transient protection diode
SRF300DD  - transient and reverse                              polarity protection diodes
SRF303       - low power coil
SRF303D    - low power coil, transient                          protection diode
SRF303DD   low power coil, transient                          and reverse polarity                                protection diodes

Resistive: 1A /28Vdc
 Contact Factory







​

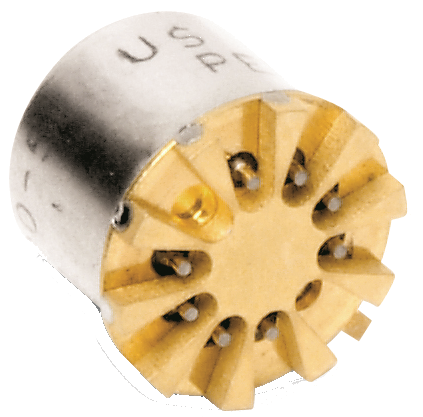

GRF300, GRF303

6 GHz Non-Latching DPDT

TO-5 hermetically sealed package, SMT straight-lead mounted, non -latching, DPDT, with high insertion loss repeatability

Bandwidth: DC - 6GHz
Signal Integrity up to 18Gbps

Available options include:
GRF300D    - transient protection diode
GRF300DD  - transient and reverse                             polarity protection diodes
GRF303      - low power coil
GRF303D    - low power coil, transient                           protection diode
GRF303DD   low power coil, transient                          and reverse polarity                                protection diodes

Resistive: 1A /28Vdc

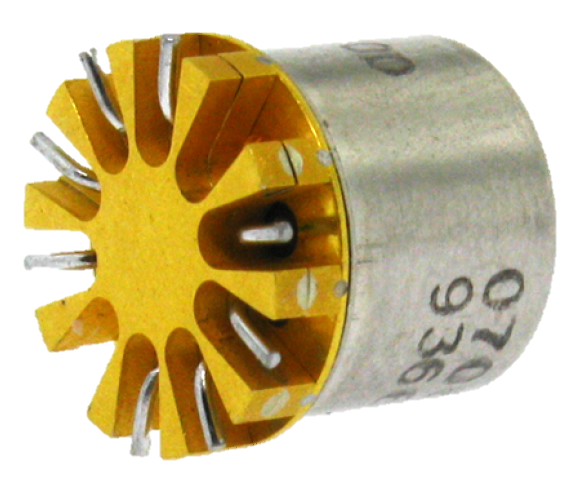

SGRF300, SGRF303

6 GHz Non-Latching DPDT

TO-5 hermetically sealed package, SMT J-lead mounted, non -latching, DPDT, with high insertion loss repeatability

Bandwidth: DC - 6GHz
Signal Integrity up to 18Gbps

Available options include:
SGRF300D    - transient protection diode
SGRF300DD  - transient and reverse                              polarity protection diodes
SGRF303      - low power coil
SGRF303D    - low power coil, transient                          protection diode
SGRF303DD  - low power coil, transient                          and reverse polarity                                protection diodes

Resistive: 1A /28Vdc



   RF312, RF332

8 GHz Non-Latching DPDT

TO-5 hermetically sealed package, through-hole mounted, non-latching, DPDT, with high insertion loss repeatability

Bandwidth: DC - 8GHz

Available options:
RF332  - low power coil


Resistive: 1A /28Vdc



GRF312

8 GHz Non-Latching DPDT

TO-5 hermetically sealed package, SMT straight-lead mounted, non-latching, DPDT, with high insertion loss repeatability

Bandwidth: DC - 8GHz

Resistive: 1A /28Vdc



SGRF312

8 GHz Non-Latching DPDT

TO-5 hermetically sealed package, SMT J-lead mounted, non-latching, DPDT, with high insertion loss repeatability

Bandwidth: DC - 8GHz

Resistive: 1A /28Vdc

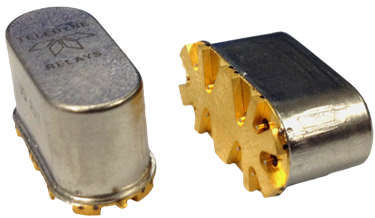

Loopback Relays

Part NO . Description CAD Files S-Parameters

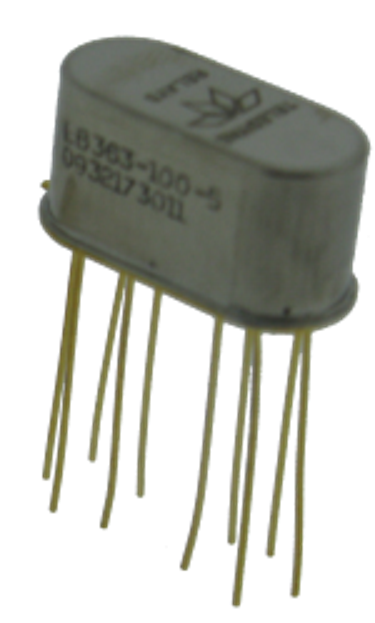

LB363

6 GHz Non-Latching  Loopback  Relay

 Extended-TO-5 hermetically sealed package, through-hole mounted, double-DPDT loopback relay

Bandwidth: DC - 6GHz
Signal Integrity: 16Gbps






Resistive: 1A /28Vdc




   GLB363

6 GHz Non-Latching  Loopback  Relay

 Extended-TO-5 hermetically sealed package, SMT straight-lead mounted, double-DPDT loopback relay

Bandwidth: DC - 6GHz
Signal Integrity: 16Gbps


Resistive: 1A /28Vdc

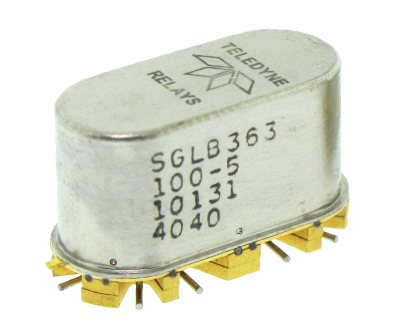

   SGLB363

6 GHz Non-Latching  Loopback  Relay

 Extended-TO-5 hermetically sealed package, SMTJ-lead mounted, double-DPDT loopback relay

Bandwidth: DC - 6GHz
Signal Integrity: 16Gbps


Resistive: 1A /28Vdc

​​​ 4PST

Part NO . Description CAD Files S-Parameters


          RF424

8 GHz Latching 4PST

TO-5 hermetically sealed package, through-hole mounted, magnetic-latching, 4PST

Bandwidth: DC - 8GHz
Signal Integrity up to 10Gbps

Available options:
RF424D  - transient protection diode




Resistive: 1A /28Vdc



   GRF424

8 GHz Latching 4PST

TO-5 hermetically sealed package, SMT straight-lead mounted, through-hole mounted, magnetic-latching, 4PST

Bandwidth: DC - 8GHz
Signal Integrity up to 10Gbps

Available options include:
GRF424D  - transient protection diode


Resistive: 1A /28Vdc
 Contact Factory



   SGRF424

8 GHz Latching 4PST

TO-5 hermetically sealed package, SMT J-lead mounted, through-hole mounted, magnetic-latching, 4PST

Bandwidth: DC - 8GHz
Signal Integrity up to 10Gbps

Available options include:
SGRF424D  - transient protection diode

Resistive: 1A /28Vdc
 Contact Factory

Attenuator Relays

Part NO . Description CAD Files S-Parameters



   A150

3 GHz Non-Latching Attenuator Relay

Extended-Centigrid hermetically sealed package, through-hole mounted, Attenuator relay

Bandwidth: DC - 3GHz


 Contact Factory

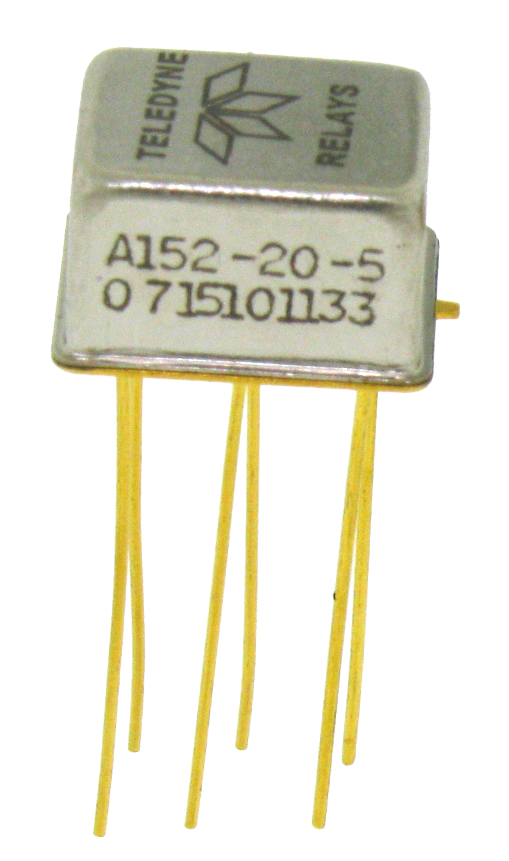

   A152

5 GHz Non-Latching  Attenuator Relay

Extended-Centigrid hermetically sealed package, through-hole mounted, Attenuator relay

Bandwidth: DC - 5GHz

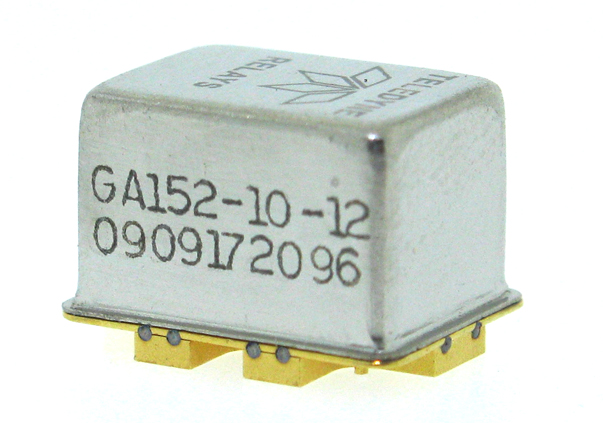

   GA152

5 GHz Non-Latching  Attenuator Relay

Extended-Centigrid hermetically sealed package, SMT straight-lead mounted, Attenuator relay

Bandwidth: DC - 5GHz

​

​
