ADVANCED ELECTRONIC SOLUTIONS



Teledyne Advanced Electronic Solutions performs comprehensive testing at the CCA and system level assembly.  Teledyne AES can perform testing developed by the customer or develop a complete test strategy for the customer’s products.

  • Bed of Nails FixtureIn-Circuit Test (Bed of Nails) or Flying Probe Testing for rapid feedback on CCAs
  • Functional testing of CCAs or complete systems
  • Environmental testing to include vibration, thermal cycling, HASS, etc.
  • CCA and system level test development
  • High frequency testing – currently to 40 GHz
  • High power system testing – currently to 4kW

Test Development

  • MDA – Flying Probe and ICT
  • System Development – Transition to Production
  • Functional Development and Transfer
  • ESS – Thermal, Vibe, HALT, HASS, etc.
  • National Instruments LabView software is our development platform of choice at Teledyne EMS
  • Boundary Scan development tool used is Asset/ScanWorks

MDA Testing

  • Agilent 3070 and Teradyne Spectrum ICT
  • Scorpion and Teradyne Flying Probe

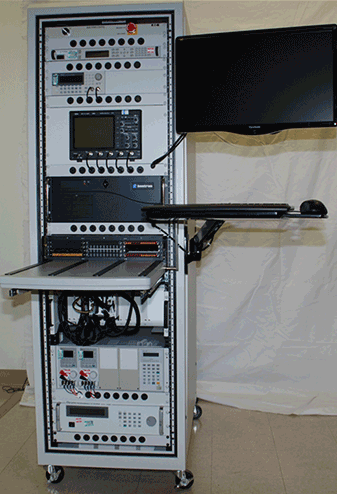

Functional Test

  • Custom and COTS Test Equipment
  • RF Engineering
  • High Power
  • Fixture Design

Environmental Testing

  • 10 Chambers, with 2 HASS
  • -100 to +180°C
  • 20 to 25°C per minute rate
  • Up to 3 axis random vibe,  2 to 30 G



​​
