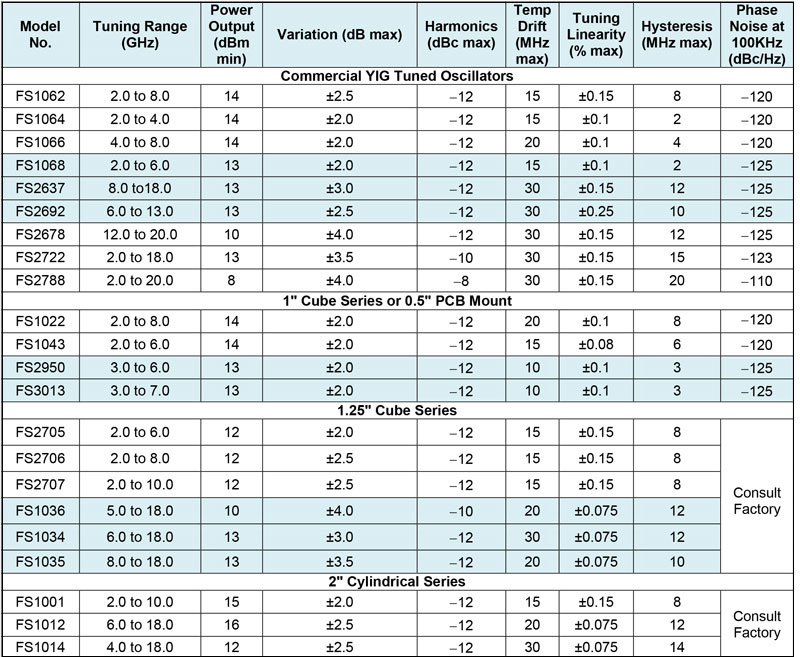

YIG OSCILLATOR MODEL TYPES

       YIG OSCILLATORS At-A-Glance
  • 0.5 to 26 GHz FM Coils for Phase Locking
  • Low Phase Noise (best in industry)
  • Multi-Octave frequency bands
  • Flat Power Output over Temperature
  • Phase Lock & Modulation Capability
  • Small & TO-8 Package Styles
  • Excellent Linearity
  • Reduced Package Sizes (surface mount, 1” & 1.25”)
  • Analog and Digital drivers available

With a 30 year heritage in YIG technology, Teledyne RF & Microwave has unsurpassed capabilities as your single source for YIG Oscillators and offers 'best in industry' low phase noise.

Teledyne has a large, self-contained YIG manufacturing and R&D infrastructure that ensures continuous YIG innovations, including the industry's only YIG filter that "locks" to a desired signal.

Teledyne has both in-house and offshore YIG manufacturing capabilities to control costs and meet stringent capacity and deliver requirements for non-ITAR products. Additionally,

Teledyne has invested extensively in Automated Test up to 50 GHz, and maintains an on-site environmental testing facility.

KEY FEATURES


Certifications
  • ISO 9001 & AS-9100 Certified Facility
  • MIL-IPC-610 & J-STD-001 (Soldering)
  • RoHS Compliant Available

MARKETS & APPLICATIONS

  • Instrumentation / Test & Measurement
  • Sweep Oscillators
  • Receiver Local Oscillators
  • Jammer Exciters
  • Low Noise Synthesizers
  • Signal Generators
  • ATE Modules
  • ELINT / COMINT Receivers










​​
