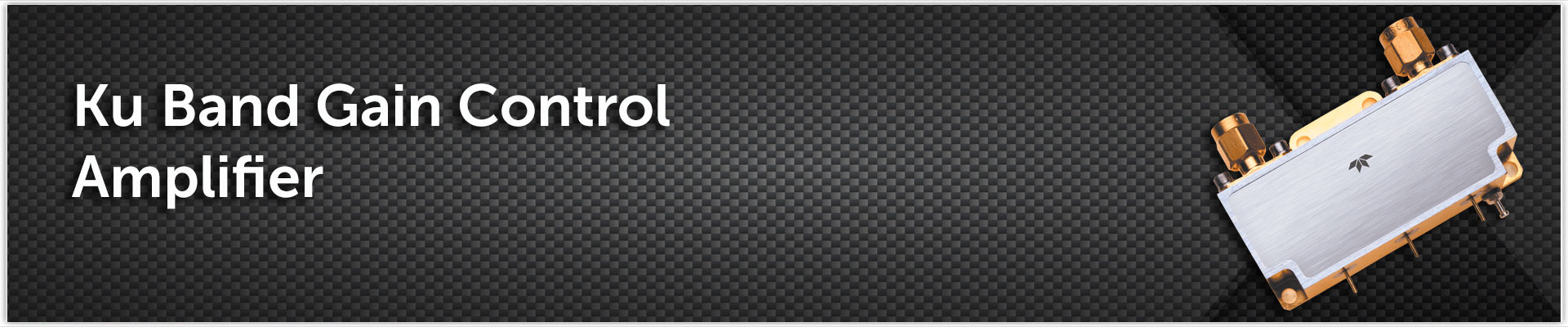

Expanding Teledyne RF & Microwave's existing line of high frequency amplifiers, microwave gain controllable amplifiers are designed and biased for critical performance applications. One example covers 10-13 GHz, offers 45 dB unattenuated small signal gain with 15 dB attenuation range. Typical gain flatness is ±0.5 dB, +35 dBm third order intercept point, +22 dBm minimum 1-dB gain compression, and 3.5 dB unattenuated noise figure 4.5 dB at full attenuation. This is only one of a series of microwave controllable amplifiers currently in production.

  • 10 to 13 GHz Frequency Band
  • 45 dB Unattenuated Gain
  • ± 0.5 dB Gain Flatness
  • 3.5 dB Noise Figure (at unattenuated setting, 4.5 dB full attenuation)
  • 15 dB Attenuation Range
  • +22 dBm Output Power at 1dB Compression
  • +35 dBm Third Order Intercept Point
