The CCM1095 and CCM2096 are power amplifiers that use current efficient Silicon Carbide output semi-conductors to achieve +35 to +38 dBm output power. An internal sequencing circuit is included to provide for safe operation of the output power device.

The CCM1095 can be adjusted to operate at voltages from +28 to +42 volts. The bias current can be adjusted to operate at any of the voltages mentioned from 250 to 600 mA. The voltages used and current settings are a function of the output power requirements. The CCM1095 provides +37 dBm with 36 volts and 500 mA of current.

The CCM2096 delivers +36 dBm output power with 36 volts and 500 mA on the output stage. The driver stage is operated with +15 volts and draws 450 mA.

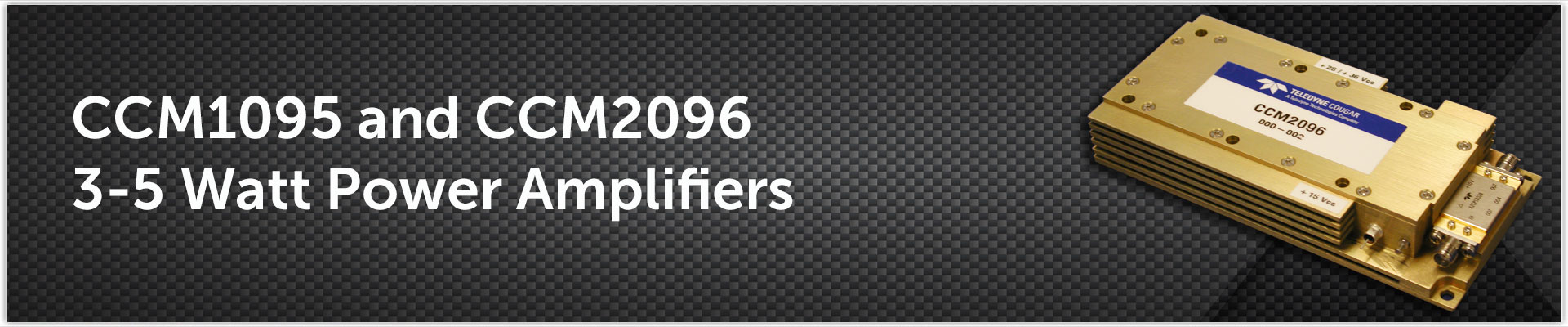

The housing shown includes the RF amplifier and the voltage sequencer. It provides over 15 sq. inches of mounting surface area to maintain cool operation.

Click the image below to view the pdf.

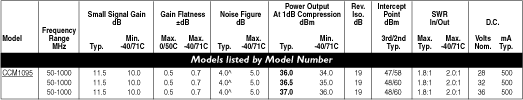

CCM 1095

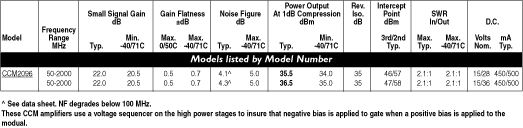

CCM 2096
