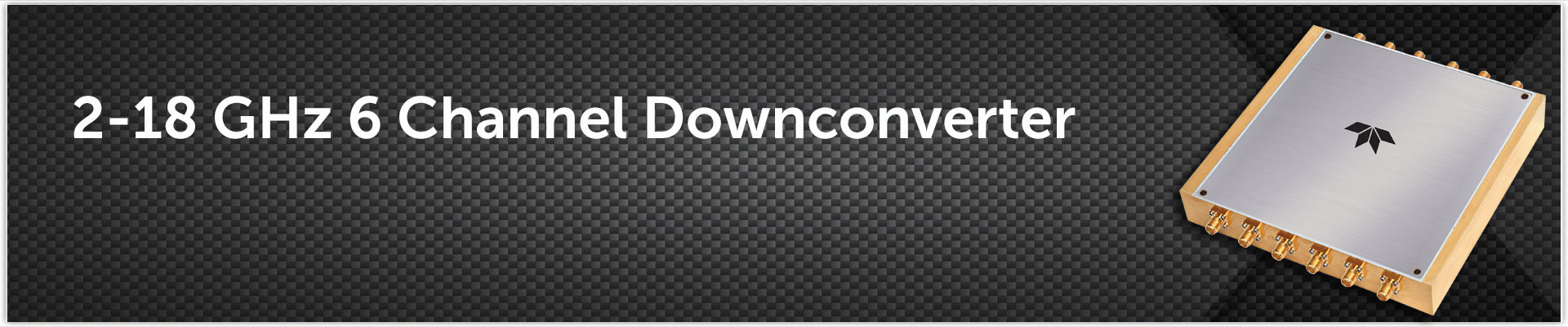

Teledyne RF & Microwave's Six Channel 2 - 18 GHz (RF and LO) downconverter operates with an IF of ~960 MHz, providing 25 dB of RF-IF gain, and bandwidth of ~500 MHz. This downconverter operates on a single LO at -6 dBm which is amplified, split, then again amplified to each of the 6 channels. Integrated into each channel is a range extension switch, controlled by a TTL input and adding 20 dB attenuation. Noise figure is ~ 13.5 dB and output IP3 is ~ +25 dBm. The downconverter is 2- sided, hermetically sealed and designed for rugged applications.


​​​​

​​
