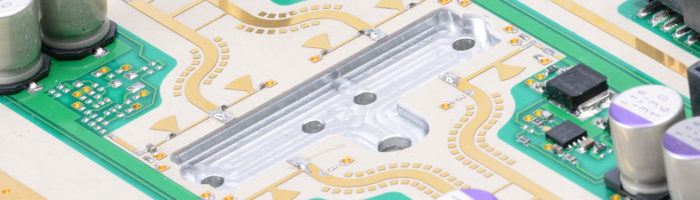

Large Format PCB

Teledyne Labtech is one of the few companies in the world who can offer large format PCB for use in RF/Microwave applications. Our continued investment has expanded our capabilities to enable Teledyne Labtech to offer a large range of non-standard PCB. Our auto-clave vacuum oven capability allows Teledyne Labtech to manufacture large format Multilayer PCB.

  • Large format PCB - 1.8 Metre x 0.55 Metre
  • Multilayer structures
  • Through Hole Plating, limited to 1.8 Metre x 0.15 Metre (THP)
  • Bonding of large PCB to metal carriers and housing
  • Integrated connectors and resistors in RF Feed Networks
