RF/Microwave Test Capability

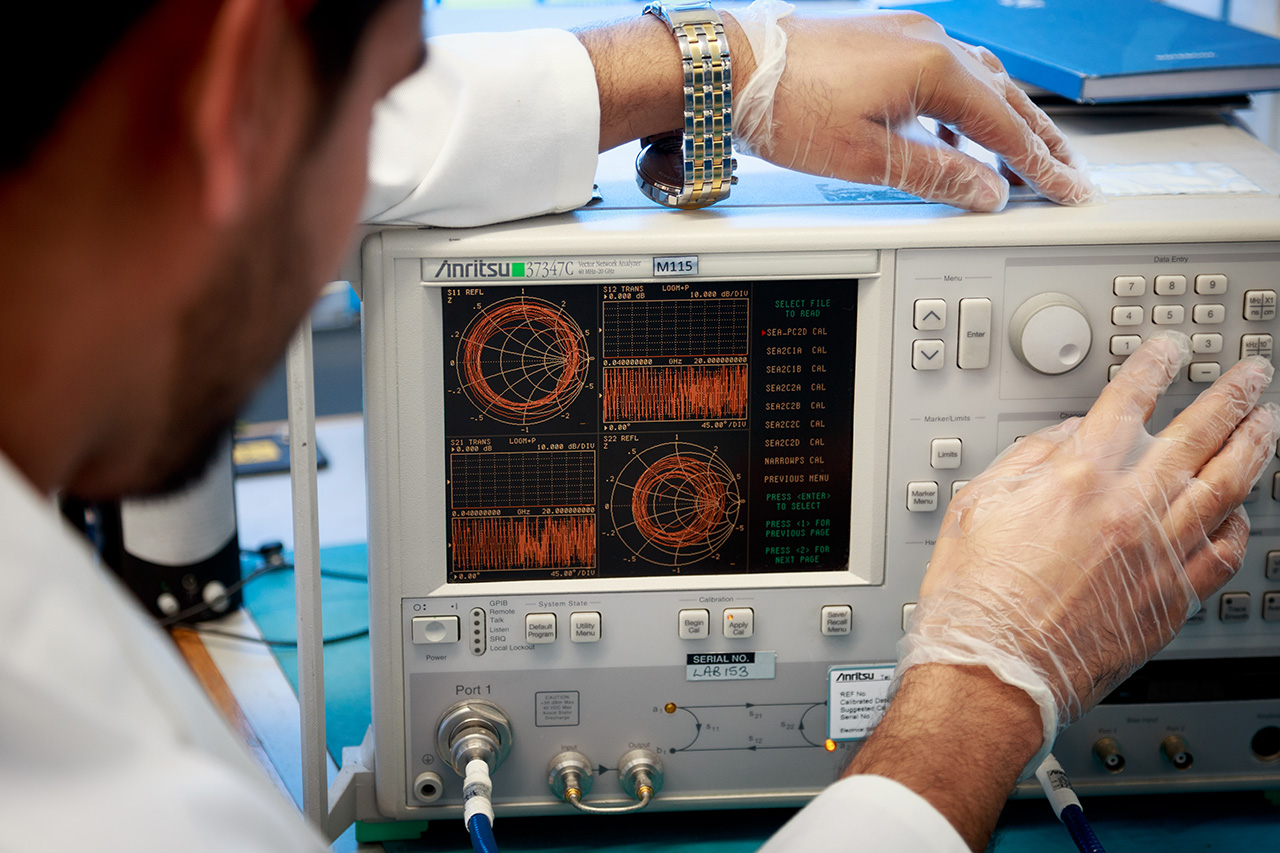

Teledyne Labtech have extensive microwave alignment and microwave testing facilities. This includes the ability to test noise figure, S-parameters and harmonics. This ensures that Teledyne Labtech can supply a fully compliant product and provide a complete turnkey microwave assembly and test solution.

  • S-parameters to 40GHz
    • Gain
    • Gain ripple
    • Input and output return loss
  • Noise Figure to 40GHz
  • Power measurements to 40GHz
  • Spectral measurements to 40GHz
    • Harmonics
    • Spurius
  • Measurement over temperature -55ºC to +100ºC
