Teledyne Labtech specialises in the design, manufacture and test of complex RF/Microwave printed circuit boards (PCBs).

Technology driven – we innovate
Turnkey - one stop for manufacture, assembly & test
Focused – technical design support for RF/microwave and large format PCBs

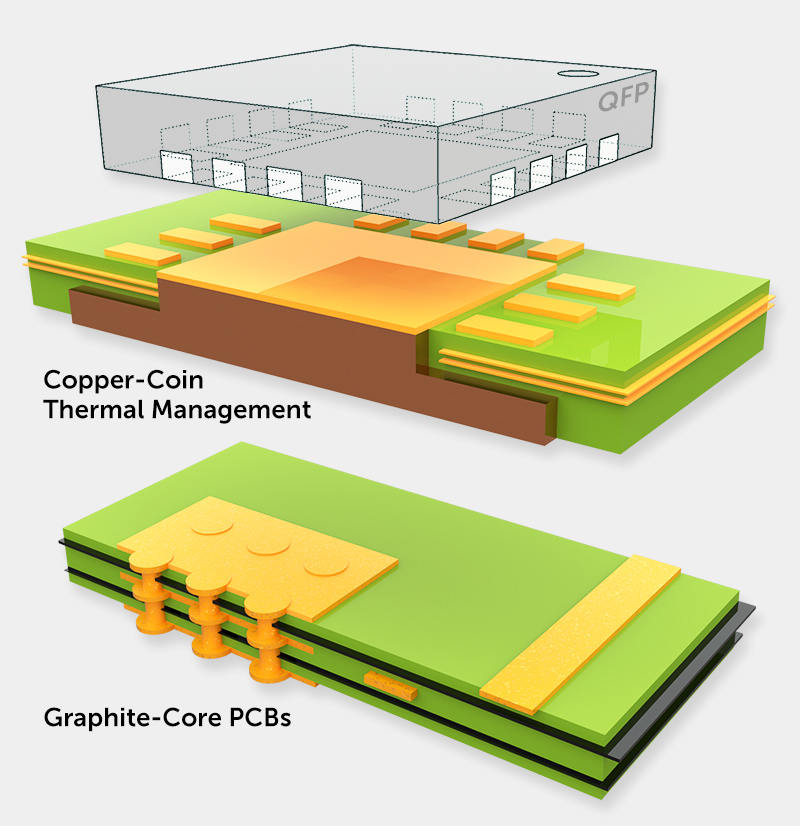

Taking the Heat Out of Microwave PCB Design

For difficult SWaP applications like T/R modules and SSPAs, learn about our copper-coin technology, and new graphite core thermal management capabilities.

Read the Press Release on
Synthetic Graphitehere.

Download the Synthetic
Graphite Core PCBs
Application Note

Download the Thermal
Management in High
Performance RF and
Microwave PCBs

Application Note.
