TMS TRANCEIVERS At-A-Glance
  • Frequency Range 0.75 GHz -18.25 GHz
  • IF range of 1-2GHz with 500MHz IBW
  • Dual conversion with Switch Filter pre-selection
  • Wide Dynamic Range +5 dB to -65 dB
  • Low NF of typically <10 dB
  • <-60 dBc Spur Performance over full frequency range
  • Integrated SDLVA & LO Generator
  • Fast tuned LO with frequency switching speed of <100 nSec
  • Frequency memory
  • Package Size 4.25 “ x 2.25”x 7”

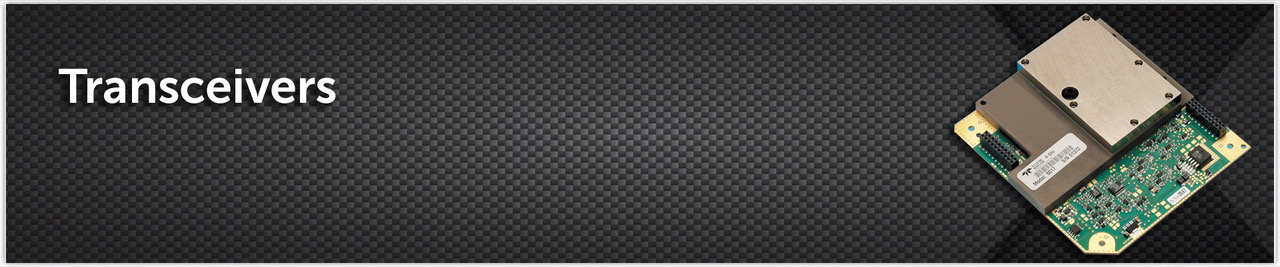

Transceiver units simultaneously receive and transmit radio frequency (RF) signals with carrier frequencies over multiple octaves from 500 MHz to 40 GHz and IF instantaneous bandwidths (IBW) of 500MHz.

 FEATURED PRODUCT

  2-18 GHz Transceiver

Full Duplex transceivers have a frequency down conversion path for signal reception (RX) and an alternate up conversion path for signal transmission (TX), separate RF ports typically multiplexed with a diplexer in the antenna coupling unit and separate IF ports for connection to the base band unit (MODEM). Both the RX and TX converters have separately tunable local oscillators with DDS in the loop fine grain tuning capability of 100Khz. Intermediate frequency (IF) 1.00 – 2.00 GHz with 500MHz IBW for both converters. The Transceiver unit is capable of rapid tuning (< 100 ns) in coarse frequency steps of 500 MHz.

 APPLICATIONS

  • Electronic Countermeasures (ECM)
  • Electronic Support Measures (ESM)
  • SIGINT/ELINT/FISINT/COMINT
  • Radar Warning Receivers
  • Missile Warning Receivers
