Hi/Mate​™  Series ​•1​3.5 k​VD​C ​​•​Various Pin

Altitude Rating
70,000 ft (21.34 km)

Operating Temperature
-55º to 125ºC​​​​​​​

Current Rating
5 Amps

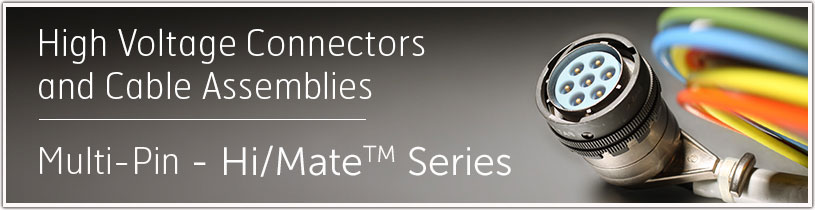

The Hi /MateTM Series are miniature insertable/removeable high voltage contact assemblies for use in MIL-C-38999 Series I, III and IV off-the-shelf connectors having a 12 gauge, rear release, contact retention cavity.

Hi/MateTM contact assemblies expand the capability of MIL-C-38999 connectors, by adapting them to carry 13.5 kVDC from sea level to airborne applications up to 70,000 feet altitude over a temperature range of -55° to 125°C. These contact assemblies are, in actuality, independent high voltage connectors, and do not rely upon the dielectric properties of the MIL-C-38999 insert; making the Hi/MateTM ideally suited to be combined in inserts with fiber optic, coaxial or low voltage pins, since the insert is merely a holder for the Hi /MateTM contact and Advanced Interface S ealTM.

View Products  •  Download PDF


Hi/MateD​​​​™ Series​​

​•

​​13.5 k​VD​C

​•

Various Pins

   Altitude Rating
70,000 ft (21.34 km)

Operating Temperature
-55º to 125ºC​​​​​​​

Current Rating
5 Amps

T​​he Hi/MateDTM Series of high voltage insertable/removeable contact assemblies are rated at 13.5 kVDC and are designed to be fitted into a Subminiature-D (Sub-D) connector 8 gauge insert cavity. TheHi/MateDTM contact assemblies are fully compatible with low voltage signal, coaxial, fiber optic and power contacts in the same Sub-D connector. These contact assemblies are independent high voltage connectors, and do not rely upon the dielectric properties of the Sub-D insert.

Complete cable assemblies with Hi/MateDTM high voltage contact assemblies installed into Positronic® ​CBD/CBM Series Subminiature-D connectors, are available from Teledyne Reynolds as fully tested units.

Positronic® is a trademark owned by Positronic Industries, Inc.
