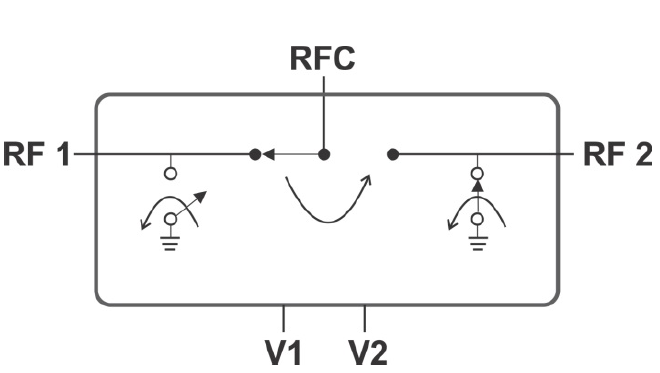

The InPD1012 series is a wideband, reflective, SPDT Active RF Switch Die, manufactured using Teledyne’s high-speed, low-loss InP HEMT process. With bandwidths from DC to 60GHz, and signal integrity up to and above 40Gbps, this switch die is ideal for integration into test and measurement equipment, microwave communications, and radar applications. The InPD1012 can tolerate up to 100 krads of radiation, alowing it to be used in space applications as well.



​​Part NO.​ Description​​​​​

    ​​
In​PD1​​012-​60​
Non-terminated SPDT Indium Phosphide Active RF Switch

• 3mm x 3mm x 1mm package size
• 100ns switching time
• Monolithic solid-state switch with no mechanical wear
• Test board with K-connectors​ can be provided​​

DC-60GHz
40​+ Gbps​




In​PD1​​012-​40​
Non-terminated SPDT Indium Phosphide Active RF Switch

• 3mm x 3mm x 1mm package size
• 100ns switching time
• Monolithic solid-state switch with no mechanical wear
• Test board with K-connectors​ can be provided​​

DC-40GHz
40​+ Gbps​



In​PD1​​012-​30​
Non-terminated SPDT Indium Phosphide Active RF Switch

• 3mm x 3mm x 1mm package size
• 100ns switching time
• Monolithic solid-state switch with no mechanical wear
• Test board with K-connectors​ can be provided​​

DC-30GHz



In​PD1​​012-​20​
Non-terminated SPDT Indium Phosphide Active RF Switch

• 3mm x 3mm x 1mm package size
• 100ns switching time
• Monolithic solid-state switch with no mechanical wear
• Test board with K-connectors​ can be provided​​

DC-20GHz



In​PD1​​012-​14​
Non-terminated SPDT Indium Phosphide Active RF Switch

• 3mm x 3mm x 1mm package size
• 100ns switching time
• Monolithic solid-state switch with no mechanical wear
• Test board with K-connectors​ can be provided​​

DC-14GHz

​​



​​​​
