Bare Board Testing

Teledyne Labtech boasts a comprehensive bareboard test capability.  Teledyne Labtech currently offer two types of bareboard test: bed of nails and flying probe.  The bed of nails test system is ideal for high volume test, whilst the flying probe is capable of testing a single PCB to the original net list.

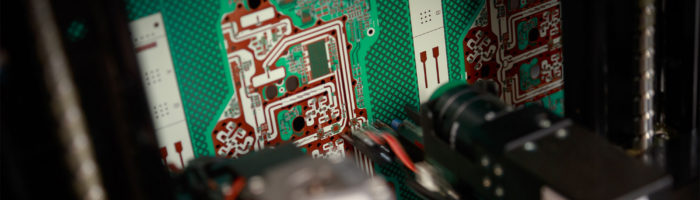

Teledyne Labtech's latest investment has been the EMMA ELX6146 flying probe tester.  This state of the art piece of test equipment boasts a working area of 610 mm x 500 mm and a probe accuracy of 10 μ; The tester can test for Continuity at 0-10V and Isolation at 250V.

  • Max board size 610 x 500 mm
  • Min pad size 80μ
  • Continuity test 0-10V
  • Isolation test 250V
  • Single board test
  • High volume test capability
  • Cavity testing of inner layers
