DRS
| Series DRS relays are designed for all types of loads. These relays feature our new high efficiency back-to-back thyristors for long lifetime expectancy. The relays utilize optical isolation to protect the control from load transients. These relays are Zero-Cross switching.
Features Include:
• AC Semiconductor Contactor with Diagnostic
• Compact size and DIN rail mounting • Zero Cross switch ON in case of overvoltage • Large control range: 3-32Vdc • IP20 housing • UL conformity
|
DH |
Series DH relays are designed for all types of loads. These relays feature our new high efficiency back-to-back thyristors for long lifetime expectancy. The relays utilize optical isolation to protect the control from load transients. All relays offer a green control LED and Zero-Cross switching.
Available options include:
DH24D25 25A, 12-280Vrms, 600Vpeak Load; 3-32Vdc Control
DH24D35 35A, 12-280Vrms, 1200Vpeak Load; 3-32Vdc Control |
|
Series SH relays offer high performance in a flexible and innovative package. Designed for all types of loads, they provide output to 125A, 690Vac. They incorporate removable touch-proof terminal covers for versatile, easy, and quick connections. SH relays feature a metal base plate and built-in LED, and are up to 30% lighter than standard relays. Zero-Cross and Random switching options available.
Available options include:
SH24D25 25A, 12-275Vac, 600Vpeak Load; 3-32Vdc Control; Zero-Cross
SH24A25 25A, 12-275Vac, 600Vpeak Load; 20-265Vac/Vdc Control; Zero-Cross
SH48D35 35A, 12-510Vac, 1200Vpeak Load; 3.5-32Vdc Control; Zero-Cross
SH48A50 50A, 12-510Vac, 1200Vpeak Load; 20-265Vac/Vdc Control; Zero-Cross
SH48D95 95A, 12-510Vac, 1200Vpeak Load; 3.5-32Vdc Control; Zero-Cross
SH48A95 95A, 12-510Vac, 1200Vpeak Load; 20-265Vac/Vdc Control; Zero-Cross
SH48R125 125A, 12-510Vac, 1200Vpeak Load; 3.5-32Vdc Control; Random
SH48D125 125A, 12-510Vac, 1200Vpeak Load; 3.5-32Vdc Control; Zero-Cross
SH48A125 125A, 12-510Vac, 1200Vpeak Load; 20-265Vac/Vdc Control; Zero-Cross
SH60D50 50A, 12-510Vac, 1600Vpeak Load; 3.5-32Vdc Control; Zero-Cross
SH60D125 125A, 24-690Vac, 1600Vpeak Load; 3.5-32Vdc Control; Zero-Cross
|
|
The Series SHP phase-angle controller provides analog switching. It features an internal microcontroller and overvoltage protection. Choose relays with either removable input spring connectors or IP20 touch-proof flaps. The relays are designed in conformity with EN60947-4-3 (IEC947-4-3)and EN60950/VDE0805 (Reinforced Insulation), and feature Phase Angle switching.
Available options include:
SHP24N50R 50A, 9-280Vac, 600Vpeak Load; 4-20mA Control
|
|
The Series S single-phase relays are designed for all types of loads. The design incorporates an SCR or triac output. The relays utilize optical isolation to protect the control from load transients. All contain an internal snubber for output protection. High-current models are excellent for motor and UPS control. Zero-Cross or Random switching options available.
Available options include:
S24D40 40A, 12-280Vrms, 600Vpeak Load; 4-30Vdc Control; Zero-Cross
S48A50 50A, 24-520Vrms, 1200Vpeak Load; 90-240Vac/Vdc Control; Zero-Cross
S48D50 50A, 24-520Vrms, 1200Vpeak Load; 5-30Vdc Control; Zero-Cross
S48R50 50A, 24-520Vrms, 1200Vpeak Load; 4-30Vdc Control; Random
S48R75 75A, 24-520Vrms, 1200Vpeak Load; 4-30Vdc Control; Random
S48A125 125A, 24-660Vrms, 1200Vpeak Load; 90-240Vac/Vdc Control; Zero-Cross
S60D125 125A, 24-660Vrms, 1600Vpeak Load; 7-30Vdc Control; Zero-Cross
|
|
Series STH relays offer high performance in a flexible and innovative package. Designed for all types of loads, they deliver output to 75A, 600Vac for resistive loads. They have removable touch-proof terminal covers for versatile, easy, and quick connections. STH relays feature a metal base-plate and are up to 30% lighter than standard relays, and are Zero-Cross switching.
Available options include:
STH24D12 12A, 12-280Vac, 600Vpeak Load; 3-32Vdc Control
STH24D25 25A, 12-280Vac, 600Vpeak Load; 3-32Vdc Control
STH24D35 35A, 12-280Vac, 600Vpeak Load; 3-32Vdc Control
STH48D50 50A, 24-600Vac, 1200Vpeak Load; 3-32Vdc Control
STH24D50 50A, 12-280Vac, 600Vpeak Load; 3-32Vdc Control
|
|
Series ST relays are designed for high-power applications. The design incorporates an SCR or triac output. The relays utilize optical isolation to protect the control from load transients. A control LED is available on certain models. Internal MOV is also available on ST24D 25A and 50A models. All Series ST relays are Zero-Cross switching.
Available options include:
ST24D12 12A, 12-280Vrms, 600Vpeak Load; 4-30Vdc Control
ST24D25 25A, 12-280Vrms, 600Vpeak Load; 4-30Vdc Control
ST48D50 50A, 24-600Vrms, 1200Vpeak Load; 5-30Vdc Control
|
|
Series LS single-inline package (SIP) relays are designed for mounting on printed circuit boards. LS relays facilitate heat sinking by providing an metallic interface surface. The relays use a direct-bonded copper substrate for thermal efficiency, thermal stress performance and long-life expectancy. Optional heat sinks are available.
Available options include:
LS24D16C 50A, 90-280Vac, 600Vpeak Load; 4-20mA Control
SHP24N50R 50A, 100-280Vac, 600Vpeak Load; 8-30Vdc Control |
|
Series FS relays are designed for medium-power loads. The relays incorporate a triac output and utilize optical isolation to protect the control from load transients. The package is available with faston or PCB terminals. The compact size of the FS makes it ideal for designs where space is limited and has excellent thermal performance. The Series FS relays are Zero-Cross Switching
Available options include:
FS24D10-06 10A, 12-280Vrms, 600Vpeak Load; 4-30Vdc Control; Faston
FS24D10 10A, 12-280Vrms, 600Vpeak Load; 4-30Vdc Control
FS24D20-06
20A, 12-280Vrms, 600Vpeak Load; 4-30Vdc Control; Faston
|
|
Series G relays are designed for medium-power loads. The design incorporates a thyristor output. Series G relays utilize optical isolation to protect the control from load transients. An internal MOV is also provided to protect against load transient voltages. The compact size makes it ideal for designs where space is limited. Zero-Cross and Random switching options available.
Available options include:
G24R12-06 12Arms, 12-320Vrms, 520Vpeak Load; 3-32Vdc Control; Random
G24D12-06 12Arms, 12-320Vrms, 520Vpeak Load; 3-32Vdc Control; Zero-Cross |
|
Series AS4 solid-state single inline (SIP) four-pin relays are designed for mounting on a printed circuit board. The relays offer built-in voltage protection and can withstand very high current overloads. The relays have a low zero-cross window. The compact size and triac output make the AS relay the perfect retrofit for electromechanical relays. All Series AS relays are Zero-Cross switching.
Available options include:
AS24D4E/R 4Arms, 12-275Vrms, 600Vpeak Load; 4-30Vdc Control
AS24D4E-X1 4Arms, 12-275Vrms, 600Vpeak Load; 6-30Vdc Control; DIN-rail clip+LED
AS24D4E-X2 4Arms, 12-275Vrms, 600Vpeak Load; 6-30Vdc Control; DIN-rail clip
AS46D4E/R 5Arms, 12-460Vrms, 800Vpeak Load; 4-30Vdc Control
|
|

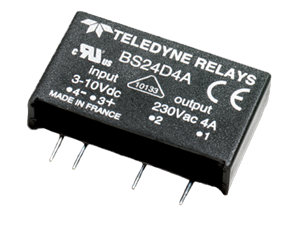

Series BS 4-amp solid-state single inline (SIP) four-pin relays are designed for mounting on a printed circuit board. BS relays can withstand very high current overloads. The compact size and triac output make the BS relay an excellent choice for switching medium power resistive loads. All Series BS relays are Zero-Cross switching.
Available options include:
BS24D4A 4Arms, 15-280Vrms, 600Vpeak Load; 3-10Vdc Control
|
 |
The Series TS relays provide AC/DC switching and AC/DC control, in a compact package. These relays can withstand high surge currents. TS relays are pin-to-pin
compatible with electromechanical relays and may be used as replacements. Applications include vending machines, lighting and fans.
Available options include:
TS3R2G 2.5A, 0-30Vdc Load; 10-30Vdc Control |
