TINYig PRODUCTS At-A-Glance
  • Smallest oscillator available in the RF and microwave industry
  • Up to 20 GHz: 3 to 8, 8 to 16, and 10 to 20 GHz (other custom bands upon request)
  • Permanent Magnet (PM)
  • Surface Mount or PCB
  • RoHS Compliant
  • Provides designers broader frequency tuning coverage to replace multiple VCOs

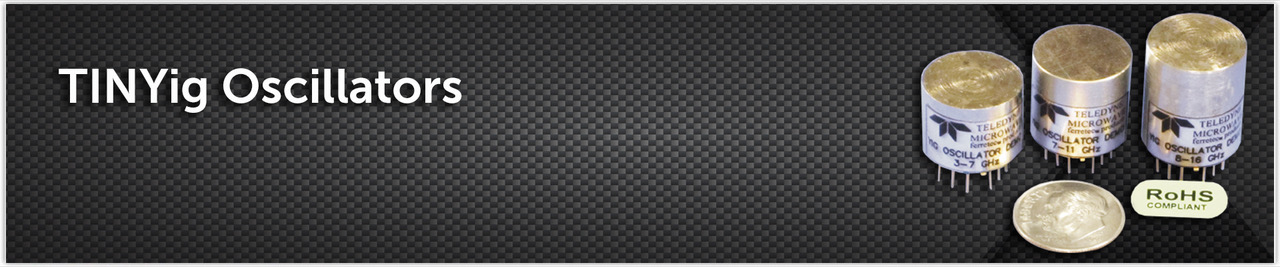

The smallest available oscillator in the industry, Teledyne RF & Microwave's TINYig is an ultra-low phase noise YIG-tuned oscillator (YTO) that provides superior phase noise frequency up to 20 GHz. Uniquely designed to be RoHS compliant, these YIG TO-8 oscillators exploit the principle of magnetic resonance to generate a clean, low phase noise microwave signal over broad tuning ranges. It can greatly simplify system designs, thus reducing costs, eliminating the need for extra components, and reducing the risk of malfunctions of complicated electronic connections and operations.

 MODEL TYPES


FS2830R FS2800R FS2772R FS2899R FS2897R FS2898R FS2900R FS3005R​
TUNING RANGE (GHz) 3 - 6
3 - 8
4 - 8
5 - 10
7 - 11
6 - 13
8 - 16
10 - 20.5
Power Output (dBm) 6 6 6 6 5 4 3 3
Power Output Variation, max (dBm) 5 6 4 4 7 7 7 7
Harmonics (dBc, max) -12 -12 -12 -12 -12 -12 -12 -12
Non-Harmonic Spurious, (dBc, max) -70 -70 -70 -70 -70 -70 -70 -70
Phase Noise dBc/Hz
@100KHz offset min. -125 -125 -125 -125 -125 -125 -123 -118
@100KHz offset typ. -128 -128 -130 -128 -128 -128 -125 -121
@10KHz offset min. -100 -100 -100 -100 -100 -100 -98 -93
Temperature Drift, (MHz, max) (0 to 60°C) ±45 ±45 ±45 ±50 ±50 ±50 ±60 ±60
Tuninq Linearity (MHz, max) ±2 ±2 ±2 ±10 ±20 ±20 ±45 ±35
Hysteresis (MHz, max) 15 15 15 15 25 25 60 60
Frequency Pushing, (MHz/V, max) 2 2 2 2 2 2 2 2
Frequency Pulling, (1.5:1 VSWR, max) 2 2 2 2 2 2 2 2
TUNING COIL
Sensitivity (MHz/mA) ±10% 8 8 8 8 9 12 12 11
Resistance (ohms, max) 7 7 7 7 6 7 10 11
Inductance (mH, max) 10 10 10 10 9 10 25 30
OPTIONAL FM COIL
Sensitivity (KHz/mA, typ) 300 300 300 300 300 350 300 350
3 dB Bandwidtd (KHz, typ) 400 400 400 400 400 400 400 400
Resistance (ohms, typ) 1 1 1 1 1 1 1 1
Inductance (uH, typ) 1 1 1 1 1 1 1 1
BIAS CURRENT
+5 or 8 Volts (mA, max) 70 70 70 70 70 70 70 70
-5 Volts (mA, max) 20 20 20 20 N/A N/A N/A N/A
OUTLINE
PCB 1305981 1305981 1305981 1305981 IN-051697 IN-051698 IN-051699 IN-051699
Surface Mount IN-050088 IN-050088 IN-050088 IN-050088 IN-051696 IN-051544 IN-051684 IN-051684

Available in PCB or Surface Mount, FSXXXXR-PCB or FSXXXXR-SMT​.
FM Coil Modulation BW available up to 2MHz.
Other Frequency bands available upon request.

 MARKETS & APPLICATIONS

  • Test and Instrumentation
  • Aerospace electronic systems
  • Synthesizers
  • Spectrum analyzers
  • PXI instrumentation
  • Bit Error Rate (BER) Testers
  • Signal generators
  • Arbitrary Wave Form Generators (AWG)
  • Any application where broad band sources are required

 KEY FEATURES

  • Best Phase Noise in Industry
  • Low power consumption (single bias optional)
  • FM Coil for phase locking
  • No heater required
